12.6 Euler Trails

A map of the United States shows the Pony Express mail route. The route began in St. Joseph, Missouri and traveled through Fort Kearney, Nebraska; Julesburg, Colorado; Fort Laramie, Wyoming; Fort Bridger, Wyoming; Salt Lake City, Utah; Fort Ruby, Nevada; Carson City, Nevada; and San Francisco, California. — **Figure 12.131** The Pony Express mail route spanned from California to Missouri.The Pony Express mail route spanned from California to Missouri. (credit: “Map of Pony Express” by Nathan Hughes Hamiltonh/Flickr, CC BY 2.0)

Learning Objectives

After completing this section, you should be able to:

Describe and identify Euler trails.
Solve applications using Euler trails theorem.
Identify bridges in a graph.
Apply Fleury’s algorithm.
Evaluate Euler trails in real-world applications.

We used Euler circuits to help us solve problems in which we needed a route that started and ended at the same place. In many applications, it is not necessary for the route to end where it began. In other words, we may not be looking at circuits, but trails, like the old Pony Express trail that led from Sacramento, California in the west to St. Joseph, Missouri in the east, never backtracking.

Euler Trails

If we need a trail that visits every edge in a graph, this would be called an Euler trail. Since trails are walks that do not repeat edges, an Euler trail visits every edge exactly once.

Example 1 Recognizing Euler Trails

Use Figure 12.132 to determine if each series of vertices represents a trail, an Euler trail, both, or neither. Explain your reasoning.

Figure 12.132 Graph H

a → b → e → g → f → c → d → e
a → b → e → g → f → c → d → e → b → a → d → g
g → d → a → b → e → d → c → f → g → e

It is a trail only. It is a trail because it is a walk that doesn’t cover any edges twice, but it is not an Euler trail because it didn’t cover edges ad or dg.
It is neither. It is not a trail because it visits ab and be twice. Since it is not a trail, it cannot be an Euler trail.
It is both. It is a trail because it is a walk that doesn’t cover any edges twice, and it is an Euler trail because it visits all the edges.

The Five Rooms Puzzle

Just as Euler determined that only graphs with vertices of even degree have Euler circuits, he also realized that the only vertices of odd degree in a graph with an Euler trail are the starting and ending vertices. For example, in Figure 12.132, Graph H has exactly two vertices of odd degree, vertex g and vertex e. Notice the Euler trail we saw in Excercise 3 of Example 1 began at vertex g and ended at vertex e.

This is consistent with what we learned about vertices off odd degree when we were studying Euler circuits. We saw that a vertex of odd degree couldn't exist in an Euler circuit as depicted in Figure 12.133. If it was a starting vertex, at some point we would leave the vertex and not be able to return without repeating an edge. If it was not a starting vertex, at some point we would return and not be able to leave without repeating an edge. Since the starting and ending vertices in an Euler trail are not the same, the start is a vertex we want to leave without returning, and the end is a vertex we want to return to and never leave. Those two vertices must have odd degree, but the others cannot.

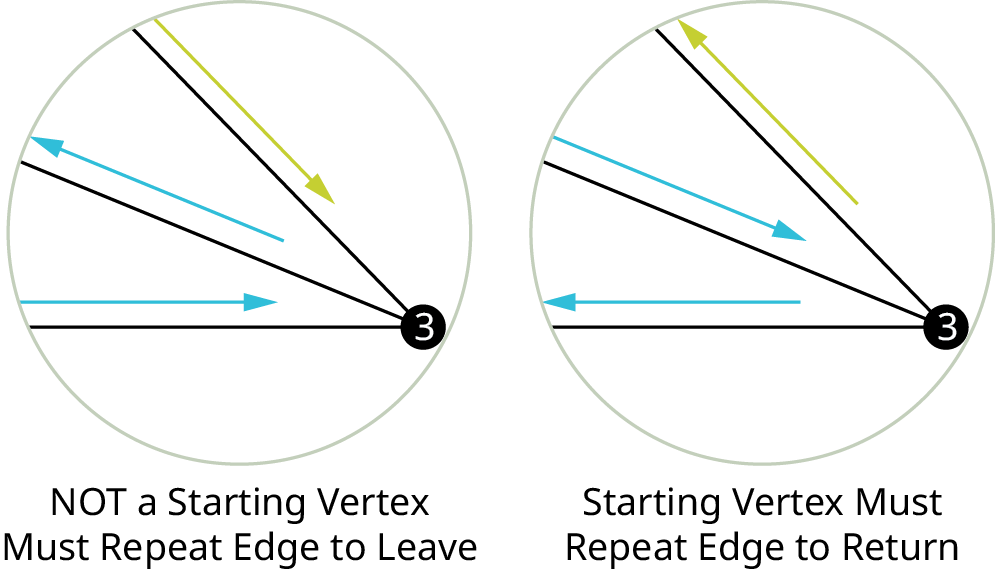

Two illustrations. The first illustration shows a vertex, 3. Two arrows point to it and an arrow points away from it. The second illustration shows a vertex, 3. Two arrows point away from it and an arrow points to it. — **Figure 12.133** A Vertex of Degree 3

Let’s use the Euler trail theorem to solve a puzzle so you can amaze your friends! This puzzle is called the “Five Rooms Puzzle.” Suppose that you were in a house with five rooms and the exterior. There is a doorway in every shared wall between any two rooms and between any room and the exterior as shown in Figure 12.134. Could you find a route through the house that passes through each doorway exactly once?

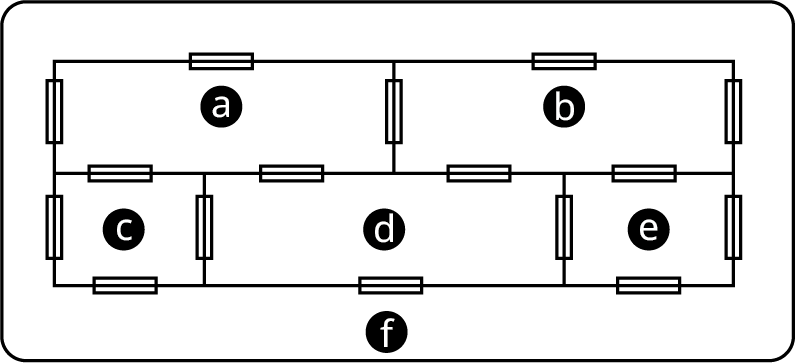

An illustration shows five rooms in a rectangle labeled f. The rooms are labeled a to e. — **Figure 12.134** Five Rooms Puzzle

Let’s represent the puzzle with a graph in which vertices are rooms (or the exterior) and an edge indicates a door between two rooms as shown in Figure 12.135.

Figure 12.135 Graph of Five Rooms Puzzle

To pass through each doorway exactly once means that we cross every edge in the graph exactly once. Since we have not been asked to start and end at the same position, but to visit each edge exactly once, we are looking for an Euler trail. Let’s check the degrees of the vertices.

A graph has six vertices a to f and their degrees are 5, 5, 4, 5, 4, and 9. Edges connect a b, a d, b d, b e, a c, c d, d e, c d, c f, d f, d e, and e f. Double curved edges connect a to f and b to f. Curved edges connect c to f and f to e. — **Figure 12.136** Degrees of Vertices in Five Rooms Puzzle

Since there are more than two vertices of odd degree as shown in Figure 12.136, the graph of the five rooms puzzle contains no Euler path. Now you can amaze and astonish your friends!

Bridges and Local Bridges

Now that we know which graphs have Euler trails, let’s work on a method to find them. The method we will use involves identifying bridges in our graphs. A bridge is an edge which, if removed, increases the number of components in a graph. Bridges are often referred to as cut-edges. In Figure 12.137, there are several examples of bridges. Notice that an edge that is not part of a cycle is always a bridge, and an edge that is part of a cycle is never a bridge.

A graph has two triangles and one square. The first triangle has vertices, a, b, and c. The second triangle has vertices, g, k, and j. The square has the vertices, e, f, h, and i. An edge connects e and i. The bridges connect b f, c g, and d g. — **Figure 12.137** Graph with Bridges

Edges bf, cg, and dg are “bridges”

The graph in Figure 12.137 is connected, which means it has exactly one component. Each time we remove one of the bridges from the graph the number of components increases by one as shown in Figure 12.138. If we remove all three, the resulting graph in Figure 12.138 has four components.

Four graphs. The first graph has two triangles and a square. The first triangle has vertices, a, b, and c. The second triangle has vertices, g, k, and j. The square has the vertices, e, f, h, and i. An edge connects e and i. The bridges connect b f, c g, and d g. The second graph is the same. The square is separated. The third graph shows the square and the triangles separated. The second triangle is connected to the vertex, d. In the fourth graph, the triangles, square, and the d vertex are separated. — **Figure 12.138** Removing a Bridge Increases Number of Components

In sociology, bridges are a key part of social network analysis. Sociologists study two kinds of bridges: local bridges and regular bridges. Regular bridges are defined the same in sociology as in graph theory, but they are unusual when studying a large social network because it is very unlikely a group of individuals in a large social network has only one link to the rest of the network. On the other hand, a local bridge occurs much more frequently. A local bridge is a friendship between two individuals who have no other friends in common. If they lose touch, there is no single individual who can pass information between them. In graph theory, a local bridge is an edge between two vertices, which, when removed, increases the length of the shortest path between its vertices to more than two edges. In Figure 12.139, a local bridge between vertices b and e has been removed. As a result, the shortest path between b and e is b → i → j → k → e, which is four edges. On the other hand, if edge ab were removed, then there are still paths between a and b that cover only two edges, like a → i → b.

Two graphs. The first graph shows a triangle, i a b resting on a square, a b d e, and another triangle, k e f resting on a square, e f g h. The squares have diagonal lines. Edges connect i j and j k. A bridge connects b e. The second graph shows a triangle, i a b resting on a square, a b d e, and another triangle, k e f resting on a square, e f g h. The squares have diagonal lines. Bridges connect i j and j k. — **Figure 12.139** Removing a Local Bridge

The significance of a local bridge in sociology is that it is the shortest communication route between two groups of people. If the local bridge is removed, the flow of information from one group to another becomes more difficult. Let’s say that vertex b is Brielle and vertex e is Ella. Now, Brielle is less likely to hear about things like job opportunities that Ella may know about. This is likely to impact Brielle as well as the friends of Brielle.

Example 2 Identifying Bridges and Local Bridges

Use the graph of a social network in Figure 12.140 to answer each question.

Figure 12.140 Graph of a Social Network

Identify any bridges.
If all bridges were removed, how many components would there be in the resulting graph?
Identify one local bridge.
For the local bridge you identified in part 3, identify the shortest path between the vertices of the local bridge if the local bridge were removed.

The edges ku, gh, and hi are bridges.
If the bridges were all removed, there would be four components in the resulting graph, {i}, {h}, {u, v, w, x}, and {a, b, c, d, e, f, g, j, k, m, n, o, p, q, r, s, t} as shown in Figure 12.141.
Figure 12.141 Graph of Social Network without Bridges
Three local bridges are dn, ef, and qt, among others.
If dn were removed, the shortest path between d and n would be d → e → f → j → o → m → n.

Finding an Euler Trail with Fleury’s Algorithm

Now that we are familiar with bridges, we can use a technique called Fleury’s algorithm, which is a series of steps, or algorithm, used to find an Euler trail in any graph that has exactly two vertices of odd degree.

Here are the steps involved in applying Fleury’s algorithm.

Step 1: Begin at either of the two vertices of odd degree.

Step 2: Remove an edge between the vertex and any adjacent vertex that is NOT a bridge, unless there is no other choice, making a note of the edge you removed. Repeat this step until all edges are removed.

Step 3: Write out the Euler trail using the sequence of vertices and edges that you found. For example, if you removed ab, bc, cd, de, and ef, in that order, then the Euler trail is a → b → c → d → e → f.

Figure 12.142 shows the steps to find an Euler trail in a graph using Fleury’s algorithm.

Eight graphs. Each graph has six vertices: t, u, v, w, x, and y. In the first graph, the edges are t u, u w, w y, y x, x v, v t, and v w. Text reads, start at odd degree. Choose direction. The edges flowing from t to u, v, and w are highlighted in blue. The second graph is the same as that of the first, with the edge, tv in dashed lines and labeled remove tv. The edges flowing from v to w and x are in blue. Text reads, then choose the direction. The third graph shows edges, t u, u w, w y, y x, x v, and v w. The edge, v w is in dashed lines and labeled remove v w. The edges from w to t and u are in blue and labeled then choose the direction. The edge from w to y is shown in red and labeled no. The fourth graph shows the edges, t u, u w, w y, y x, x v, and t w. The edge, w u is in dashed lines, and remove w u. The edge from w to y is in red and labeled do not remove bridge wy. The edge from u to t is in blue. The fifth graph shows the edge, t u, t w, w y, y x, and x v. The edge, u t is in dashed lines and labeled remove u t. The edge from t to w is in blue. The sixth graph shows the edge, t w, w y, y z, and x v. The edge, t w is in dashed lines and labeled remove t w. The edge from w to y is in blue. The seventh graph shows the edges, w y, y z, and x v. The edge, w y is in dashed lines and labeled remove w y. The edge from y to x is in blue. The eighth graph shows the edges, y x, and x v. The edge, y x is in dashed lines and labeled remove y x then x v. The edge from x to v is in blue. — **Figure 12.142** Using Fleury’s Algorithm To Find Euler Trail

The Euler trail that was found in Figure 12.142 is t → v → w → u → t → w → y → x → v.

Example 3 Finding an Euler Trail with Fleury’s Algorithm

Use Fleury’s Algorithm to find an Euler trail for Graph J in Figure 12.143.

Figure 12.143 Graph J

Step 1: Choose one of the two vertices of odd degree, c or f, as your starting vertex. We will choose c.

Step 2: Remove edge ca, cb, or cd. None of these are cut edges so we can select any of the three. We will choose cb as shown in Figure 12.144 to be the first edge removed.

Figure 12.144 Graph J with cb Removed

Repeat Step 2 The next choice is to remove edge ba, bd, or bf as shown in Figure 12.144, but bf is not an option since it is a bridge. We will choose ba as shown in Figure 12.145 to be the second edge removed.

Figure 12.145 Graph J with cb and ba Removed

Repeat Step 2 for the third, fourth, fifth, sixth, and seventh edges. As shown in Figure 12.145, until we get to the seventh edge there is only one option each time, ac, cd, db, and bf in that order. For the seventh edge, we must choose between fe and fg. Neither of these are bridges. We choose fe. Figure 12.146 shows that ac, cd, db, bf, and fe have been removed.

Figure 12.146 Graph J with Seven Edges Removed

Repeat Step 2 for the eight, ninth, tenth, and eleventh edges. As shown in Figure 12.146, there is only one option for each of these edges, eh, hi, ig, and gf, in that order.

Step 3: Write out the Euler trail using the vertices in the sequence that the edges were removed. We removed cb, ba, ac, cd, db, bf, fe, eh, hi, ig, and gf, in that order. The Euler trail is c → b → a → c → d → b → f → e → h → i → g → f.

In the previous section, we found Euler circuits using an algorithm that involved joining circuits together into one large circuit. You can also use Fleury’s algorithm to find Euler circuits in any graph with vertices of all even degree. In that case, you can start at any vertex that you would like to use.

Step 1: Begin at any vertex.

Step 3: Write out the Euler circuit using the sequence of vertices and edges that you found. For example, if you removed ab, bc, cd, de, and ea, in that order, then the Euler circuit is a → b → c → d → e → a.

Example 4 Finding an Euler Circuit or Euler Trail Using Fleury’s Algorithm

Use Fleury’s algorithm to find either an Euler circuit or Euler trail in Graph G in Figure 12.147.

Figure 12.147 Graph G

Graph G has all vertices of even degree so it has an Euler circuit.

Step 1: Choose any vertex. We will choose vertex j.

Step 2: Remove one of the four edges that meet at vertex j. Since jn is a bridge, we must remove either jh, ji, or jk. We remove ji as shown in Figure 12.148.

Figure 12.148 Graph G with 1 Edge Removed

Repeat Step 2: Since id is a bridge, we can remove either ih or ik next. We remove ih, and then the only option is to remove hj as shown in Figure 12.149.

Figure 12.149 Graph G with 3 Edges Removed

Repeat Step 2: Since jn is a bridge, the next edge removed must be jk, and then the only option is to remove ki followed by id as shown in Figure 12.149. Even though id is a bridge, it can be removed because it is the only option at this point. Figure 12.150 shows Graph G with these additional edges removed.

Figure 12.150 Graph G with 6 Edges Removed

Repeat Step 2: Choose any one of the edges db, dc, or de. We remove dc as shown in Figure 12.151.

Figure 12.151 Graph G with 7 Edges Removed

Repeat Step 2: Since co is a bridge, choose cb next. We remove cb, then bd, and then de as shown in Figure 12.152.

Figure 12.152 Graph G with 10 Edges Removed

Repeat Step 2: Next, remove ec and co. Then choose any of op, pn, or om. We remove on as shown in Figure 12.153.

Figure 12.153 Graph G with 13 Edges Removed

Repeat Step 2: Next, remove either nm, np, or nj, but nj is a So, we remove nm as shown in Figure 12.154.

Figure 12.154 Graph G with 14 Edges Removed

Repeat Step 2: Next, remove mo, op, pn, and nj. And we are done!

Step 3: Notice that the algorithm brought us back to the vertex where we started, forming an Euler circuit. Write out the Euler circuit:

j → i → h → j → k → i → d → c → b → d → e → c → o → n → m → o → p → n → j

Key Terms

algorithm
Fleury’s algorithm
Euler trail
bridge
local bridge

Key Concepts

An Euler trail exists whenever a graph has exactly two vertices of odd degree.
When a bridge is removed from a graph, the number of components increases.
A bridge is never part of a circuit.
When a local bridge is removed from a graph, the distance between vertices increases.
An edge that is part of a triangle is never a local bridge.

Videos

Adapted from Contemporary Mathematics by OpenStax (openstax.org), licensed under CC BY-NC-SA 4.0. Changes were made. License: CC-BY-NC-SA-4.0.
