10.5 Tessellations

Learning Objectives

After completing this section, you should be able to:

1. Apply translations, rotations, and reflections.
2. Determine if a shape tessellates.

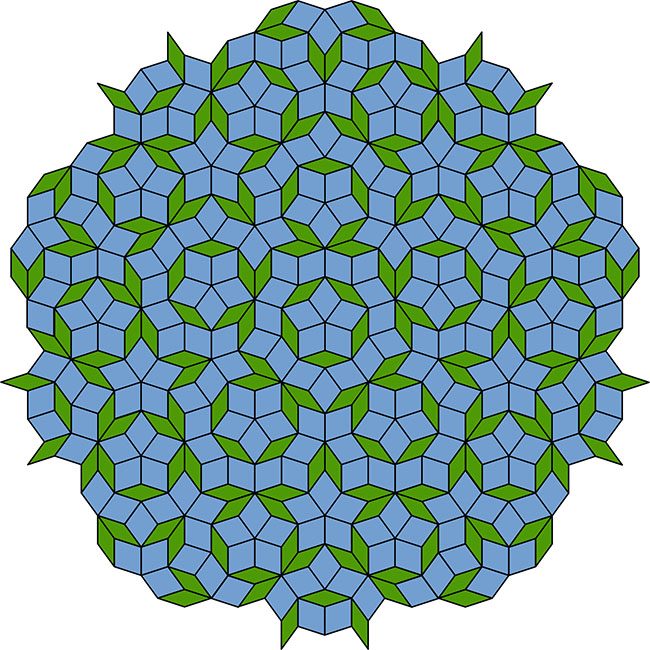

Tessellation Properties and Transformations

A regular tessellation means that the pattern is made up of congruent regular polygons, same size and shape, including some type of movement; that is, some type of transformation or symmetry. Here we consider the rigid motions of translations, rotations, reflections, or glide reflections. A plane of tessellations has the following properties:

• Patterns are repeated and fill the plane.
• There are no gaps or overlaps. Shapes must fit together perfectly. (It was Escher who determined that a proper tessellation could have no gaps and no overlaps.)
• Shapes are combined using a transformation.
• All the shapes are joined at a vertex. In other words, if you were to draw a circle around a vertex, it would include a corner of each shape touching at that vertex.
• For a tessellation of regular congruent polygons, the sum of the measures of the interior angles that meet at a vertex equals ${360}^{\circ }.$

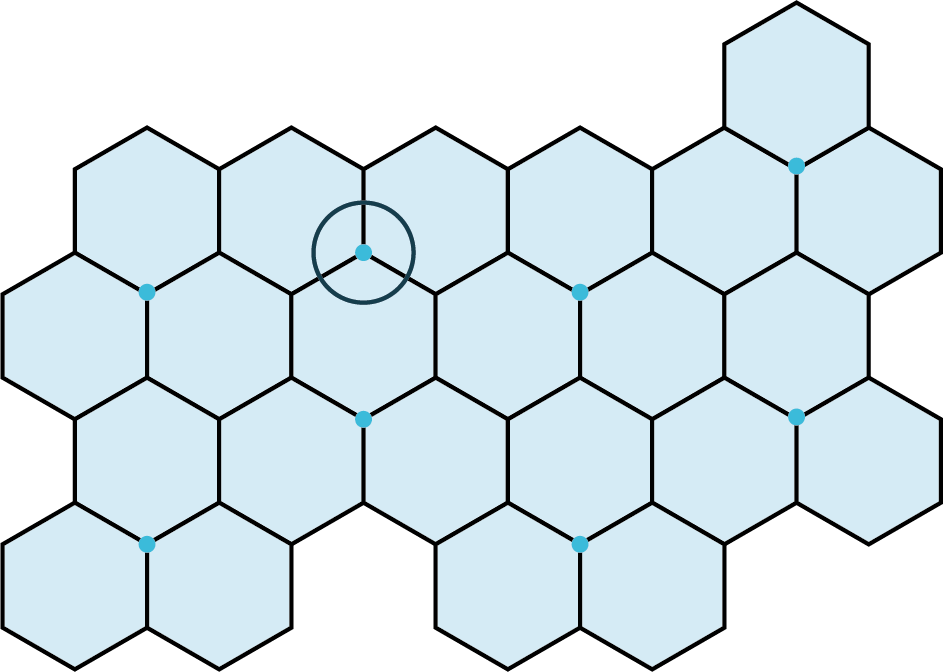

In Figure 10.79, the tessellation is made up of squares. There are four squares meeting at a vertex. An interior angle of a square is ${90}^{\circ }$ and the sum of four interior angles is ${360}^{\circ }.$ In Figure 10.80, the tessellation is made up of regular hexagons. There are three hexagons meeting at each vertex. The interior angle of a hexagon is ${120}^{\circ },$ and the sum of three interior angles is ${360}^{\circ }.$ Both tessellations will fill the plane, there are no gaps, the sum of the interior angle meeting at the vertex is ${360}^{\circ },$ and both are achieved by translation transformations. These tessellations work because all the properties of a tessellation are present.

The movements or rigid motions of the shapes that define tessellations are classified as translations, rotations, reflections, or glide reflections. Let’s first define these movements and then look at some examples showing how these transformations are revealed.

Translation

A translation is a movement that shifts the shape vertically, horizontally, or on the diagonal. Consider the trapezoid $ABCD$ in Figure 10.81. We have translated it 3 units to the right and 3 units up. That means every corner is moved by the number of units and in the direction specified. Mathematicians will indicate this movement with a vector, an arrow that is drawn to illustrate the criteria and the magnitude of the translation. The location of the translated trapezoid is marked with the vertices, $A^{\prime }{B}^{\prime }{C}^{\prime }{D}^{\prime },$ but it is still the exact same shape and size as the original trapezoid $ABCD$.

Rotation

The rotation transformation occurs when you rotate a shape about a point and at a predetermined angle. In Figure 10.84, the triangle is rotated around the rotation point by ${90}^{\circ },$ and then translated 7 units up and 4 units over to the right. That means that each corner is translated to the new location by the same number of units and in the same direction.

We can see that $\text{Δ}A$ is mapped to $\text{Δ}{A}^{\prime }$ by a rotation of ${90}^{\circ }$ up and to the right. If rotated again by ${90}^{\circ }$, the triangle would be upside down.

Reflection

A reflection is the third transformation. A shape is reflected about a line and the new shape becomes a mirror image. You can reflect the shape vertically, horizontally, or on the diagonal. There are two shapes in Figure 10.86. The quadrilateral is reflected horizontally; the arrow shape is reflected vertically.

Glide Reflection

The glide reflection is the fourth transformation. It is a combination of a reflection and a translation. This can occur by first reflecting the shape and then gliding or translating it to its new location, or by translating first and then reflecting. The example in Figure 10.87 shows a trapezoid, which is reflected over the dashed line, so it appears upside down. Then, we shifted the shape horizontally by 6 units to the right. Whether we use the glide first or the reflection first, the end result is the same in most cases. However, the tessellation shown in the next example can only be achieved by a reflection first and then a translation.

Interior Angles

The sum of the interior angles of a tessellation is ${360}^{\circ }$. In Figure 10.90, the tessellation is made of six triangles formed into the shape of a hexagon. Each angle inside a triangle equals ${60}^{\circ }$, and the six vertices meet the sum of those interior angles, $6\left({60}^{°}\right)={360}^{°}$.

In Figure 10.91, the tessellation is made up of trapezoids, such that two of the interior angles of each trapezoid equals ${75}^{°}$ and the other two angles equal ${105}^{°}$. Thus, the sum of the interior angles where the vertices of four trapezoids meet equals $${105}^{°}+{75}^{°}+{75}^{°}+{105}^{°}={360}^{°}$$.

These tessellations illustrate the property that the shapes meet at a vertex where the interior angles sum to ${360}^{°}$.

Tessellating Shapes

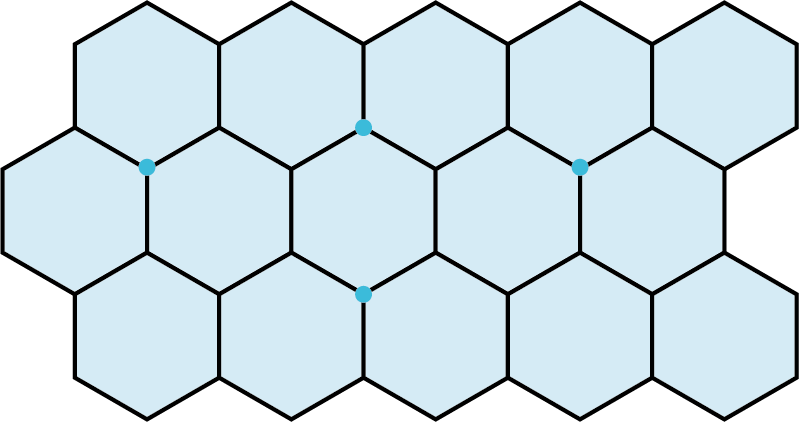

We might think that all regular polygons will tessellate the plane by themselves. We have seen that squares do and hexagons do. The pattern of squares in Figure 10.92 is a translation of the shape horizontally and vertically. The hexagonal pattern in Figure 10.93, is translated horizontally, and then on the diagonal, either to the right or to the left. This particular pattern can also be formed by rotations. Both tessellations are made up of congruent shapes and each shape fits in perfectly as the pattern repeats.

We have also seen that equilateral triangles will tessellate the plane without gaps or overlaps, as shown in Figure 10.94. The pattern is made by a reflection and a translation. The darker side is the face of the triangle and the lighter side is the back of the triangle, shown by the reflection. Each triangle is reflected and then translated on the diagonal.

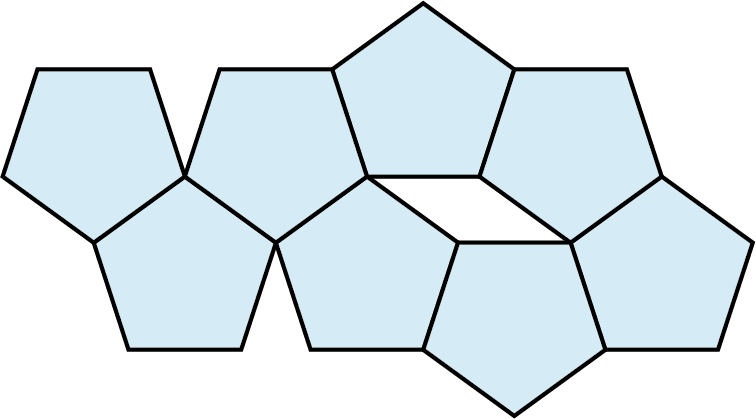

Escher experimented with all regular polygons and found that only the ones mentioned, the equilateral triangle, the square, and the hexagon, will tessellate the plane by themselves. Let’s try a few other regular polygons to observe what Escher found.

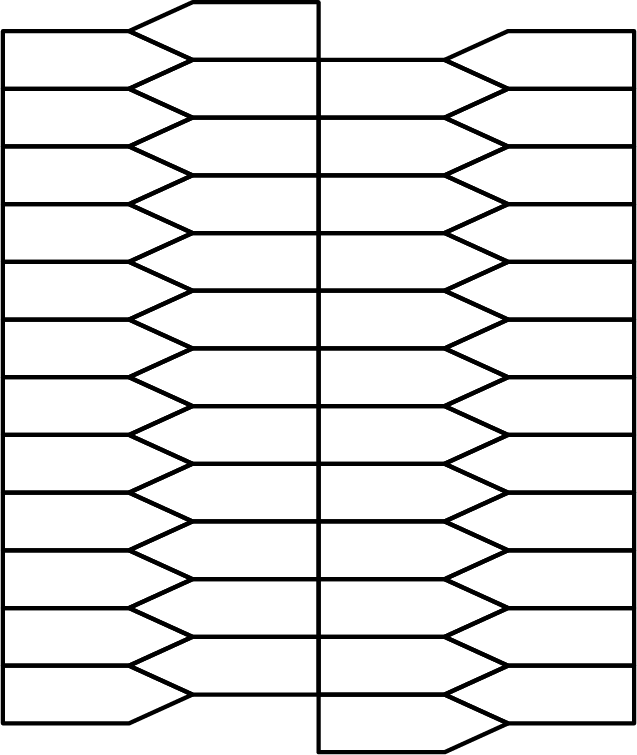

Just because regular pentagons do not tessellate the plane by themselves does not mean that there are no pentagons that tessellate the plane, as we see in Figure 10.97.

Another example of an irregular polygon that tessellates the plane is by using the obtuse irregular triangle from a previous example. What transformations should be performed to produce the tessellation shown in Figure 10.98?

First, the triangle is reflected over the tip at point $A$, and then translated to the right and joined with the original triangle to form a parallelogram. The parallelogram is then translated on the diagonal and to the right and to the left.

Naming

A tessellation of squares is named by choosing a vertex and then counting the number of sides of each shape touching the vertex. Each square in the tessellation shown in Figure 10.99 has four sides, so starting with square $A$, the first number is 4, moving around counterclockwise to the next square meeting the vertex, square $B$, we have another 4, square $C$ adds another 4, and finally square $D$ adds a fourth 4. So, we would name this tessellation a 4.4.4.4.

The hexagon tessellation, shown in Figure 10.100 has six sides to the shape and three hexagons meet at the vertex. Thus, we would name this a 6.6.6. The triangle tessellation, shown in Figure 10.101 has six triangles meeting the vertex. Each triangle has three sides. Thus, we name this a 3.3.3.3.3.3.

Key Terms

• tessellation
• translation
• reflection
• rotation
• glide reflection

Key Concepts

• A tessellation is a particular pattern composed of shapes, usually polygons, that repeat and cover the plane with no gaps or overlaps.
• Properties of tessellations include rigid motions of the shapes called transformations. Transformations refer to translations, rotations, reflections, and glide reflections. Shapes are transformed in such a way to create a pattern.
