11.7 Function Notation and Transformation of Graphs

Function Notation

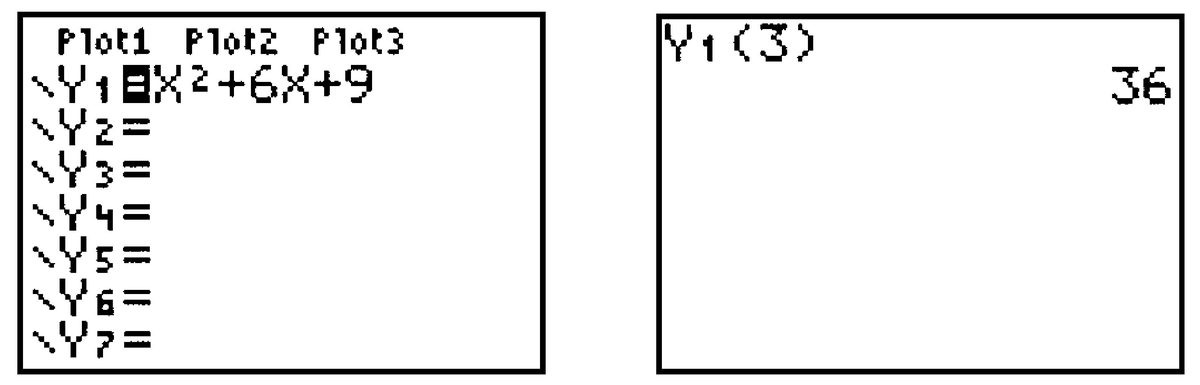

The calculator uses Y 1 ( X ) , Y 2 ( X ) , and so on, instead of f ( x ) , g ( x ) , and so on, for function notation.

Transformation of Graphs

We can use function notation to facilitate graphing transformations. In the examples below, we use f ( x ) = x 2 .

Translations

Vertical Scalings and Reflections

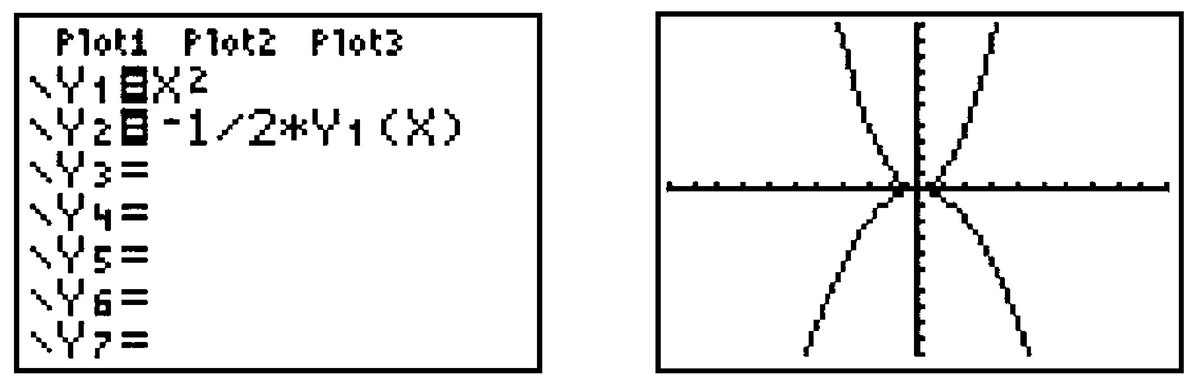

Compare the graph of y = − 1 2 f ( x ) with that of y = f ( x ) .

Define Y 1 = X 2 and Y 2 = − 1 / 2 ∗ Y 1 ( X ) . Press to see the graphs (Figure).

GC vertical reflection of parabola
