10.4 Moment of Inertia and Rotational Kinetic Energy

So far in this chapter, we have been working with rotational kinematics: the description of motion for a rotating rigid body with a fixed axis of rotation. In this section, we define two new quantities that are helpful for analyzing properties of rotating objects: moment of inertia and rotational kinetic energy. With these properties defined, we will have two important tools we need for analyzing rotational dynamics.

Rotational Kinetic Energy

Any moving object has kinetic energy. We know how to calculate this for a body undergoing translational motion, but how about for a rigid body undergoing rotation? This might seem complicated because each point on the rigid body has a different velocity. However, we can make use of angular velocity—which is the same for the entire rigid body—to express the kinetic energy for a rotating object. Figure 10.17 shows an example of a very energetic rotating body: an electric grindstone propelled by a motor. Sparks are flying, and noise and vibration are generated as the grindstone does its work. This system has considerable energy, some of it in the form of heat, light, sound, and vibration. However, most of this energy is in the form of rotational kinetic energy.

Figure is a photo of a man sharpening a piece of metal on the rotating grindstone. Sparks from the grindstone are clearly evident. — **Figure 10.17** The rotational kinetic energy of the grindstone is converted to heat, light, sound, and vibration.The rotational kinetic energy of the grindstone is converted to heat, light, sound, and vibration. (credit: Zachary David Bell, US Navy)

Energy in rotational motion is not a new form of energy; rather, it is the energy associated with rotational motion, the same as kinetic energy in translational motion. However, because kinetic energy is given by $K = \frac{1}{2} m v^{2}$ , and velocity is a quantity that is different for every point on a rotating body about an axis, it makes sense to find a way to write kinetic energy in terms of the variable $ω$ , which is the same for all points on a rigid rotating body. For a single particle rotating around a fixed axis, this is straightforward to calculate. We can relate the angular velocity to the magnitude of the translational velocity using the relation $v_{t} = ω r$ , where r is the distance of the particle from the axis of rotation and $v_{t}$ is its tangential speed. Substituting into the equation for kinetic energy, we find

$K = \frac{1}{2} m v_{t}^{2} = \frac{1}{2} m {(ω r)}^{2} = \frac{1}{2} (m r^{2}) ω^{2} .$

In the case of a rigid rotating body, we can divide up any body into a large number of smaller masses, each with a mass $m_{j}$ and distance to the axis of rotation $r_{j}$ , such that the total mass of the body is equal to the sum of the individual masses: $M equals ∑ j m sub j$ . Each smaller mass has tangential speed $v_{j}$ , where we have dropped the subscript t for the moment. The total kinetic energy of the rigid rotating body is

$K = \sum_{j} \frac{1}{2} m_{j} v_{j}^{2} = \sum_{j} \frac{1}{2} m_{j} {(r_{j} ω_{j})}^{2}$

and since $ω_{j} = ω$ for all masses,

$K = \frac{1}{2} (\sum_{j} m_{j} r_{j}^{2}) ω^{2} .$

(10.16)

The units of Equation 10.16 are joules (J). The equation in this form is complete, but awkward; we need to find a way to generalize it.

Moment of Inertia

If we compare Equation 10.16 to the way we wrote kinetic energy in Work and Kinetic Energy, $(\frac{1}{2} m v^{2})$ , this suggests we have a new rotational variable to add to our list of our relations between rotational and translational variables. The quantity $∑ j m sub j r j 2$ is the counterpart for mass in the equation for rotational kinetic energy. This is an important new term for rotational motion. This quantity is called the moment of inertia I, with units of $kg \cdot m^{2}$ :

$I equals ∑ j m sub j r j 2.$

(10.17)

For now, we leave the expression in summation form, representing the moment of inertia of a system of point particles rotating about a fixed axis. We note that the moment of inertia of a single point particle about a fixed axis is simply $m r^{2}$ , with r being the distance from the point particle to the axis of rotation. In the next section, we explore the integral form of this equation, which can be used to calculate the moment of inertia of some regular-shaped rigid bodies.

The moment of inertia is the quantitative measure of rotational inertia, just as in translational motion, and mass is the quantitative measure of linear inertia—that is, the more massive an object is, the more inertia it has, and the greater is its resistance to change in linear velocity. Similarly, the greater the moment of inertia of a rigid body or system of particles, the greater is its resistance to change in angular velocity about a fixed axis of rotation. It is interesting to see how the moment of inertia varies with r, the distance to the axis of rotation of the mass particles in Equation 10.17. Rigid bodies and systems of particles with more mass concentrated at a greater distance from the axis of rotation have greater moments of inertia than bodies and systems of the same mass, but concentrated near the axis of rotation. In this way, we can see that a hollow cylinder has more rotational inertia than a solid cylinder of the same mass when rotating about an axis through the center. Substituting Equation 10.17 into Equation 10.16, the expression for the kinetic energy of a rotating rigid body becomes

$K = \frac{1}{2} I ω^{2} .$

We see from this equation that the kinetic energy of a rotating rigid body is directly proportional to the moment of inertia and the square of the angular velocity. This is exploited in flywheel energy-storage devices, which are designed to store large amounts of rotational kinetic energy. Many carmakers are now testing flywheel energy storage devices in their automobiles, such as the flywheel, or kinetic energy recovery system, shown in Figure 10.18.

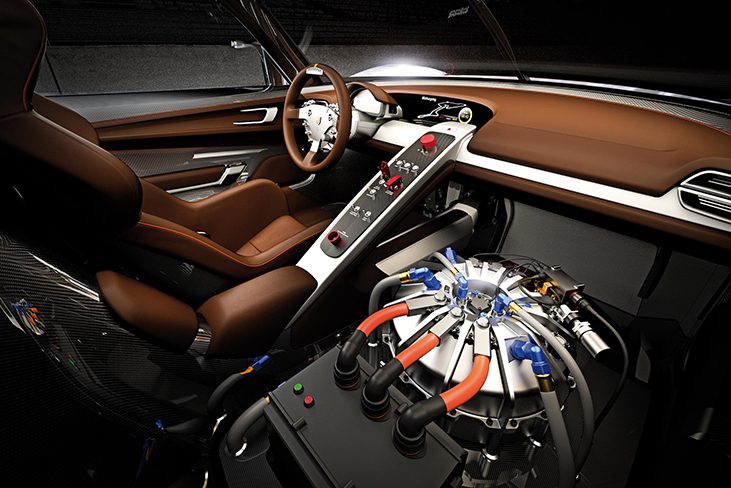

Figure is a photo of a kinetic energy recovery system flywheel installed next to the driver’s seat in a car. — **Figure 10.18** A KERS (kinetic energy recovery system) flywheel used in cars.A KERS (kinetic energy recovery system) flywheel used in cars. (credit: “cmonville”/Flickr)

The rotational and translational quantities for kinetic energy and inertia are summarized in Table 10.4. The relationship column is not included because a constant doesn’t exist by which we could multiply the rotational quantity to get the translational quantity, as can be done for the variables in Table 10.3.

**Table 10.4** Rotational and Translational Kinetic Energies and Inertia
Rotational	Translational
$I equals ∑ j m sub j r j 2$	$m$
$K = \frac{1}{2} I ω^{2}$	$K = \frac{1}{2} m v^{2}$

Example 1 Moment of Inertia of a System of Particles

Six small washers are spaced 10 cm apart on a rod of negligible mass and 0.5 m in length. The mass of each washer is 20 g. The rod rotates about an axis located at 25 cm, as shown in Figure 10.19. (a) What is the moment of inertia of the system? (b) If the two washers closest to the axis are removed, what is the moment of inertia of the remaining four washers? (c) If the system with six washers rotates at 5 rev/s, what is its rotational kinetic energy?

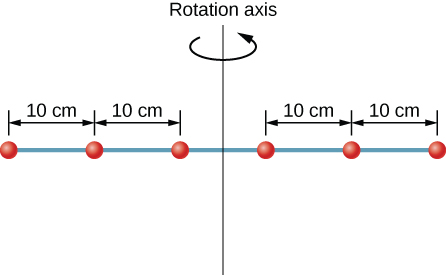

Figure 10.19 Six washers are spaced 10 cm apart on a rod of negligible mass and rotating about a vertical axis.

Strategy

We use the definition for moment of inertia for a system of particles and perform the summation to evaluate this quantity. The masses are all the same so we can pull that quantity in front of the summation symbol.
We do a similar calculation.
We insert the result from (a) into the expression for rotational kinetic energy.

Solution

$I = \sum_{j} m_{j} r_{j}^{2} = (0.02 kg) (2 \times {(0.25 m)}^{2} + 2 \times {(0.15 m)}^{2} + 2 \times {(0.05 m)}^{2}) = 0.0035 kg \cdot m^{2}$ .
$I = \sum_{j} m_{j} r_{j}^{2} = (0.02 kg) (2 \times {(0.25 m)}^{2} + 2 \times {(0.15 m)}^{2}) = 0.0034 kg \cdot m^{2}$ .
$K = \frac{1}{2} I ω^{2} = \frac{1}{2} (0.0035 kg \cdot m^{2}) (5.0 \times 2 π rad / {s)}^{2} = 1.73 J$ .

Significance We can see the individual contributions to the moment of inertia. The masses close to the axis of rotation have a very small contribution. When we removed them, it had a very small effect on the moment of inertia.

In the next section, we generalize the summation equation for point particles and develop a method to calculate moments of inertia for rigid bodies. For now, though, Figure 10.20 gives values of moment of inertia for common object shapes around specified axes.

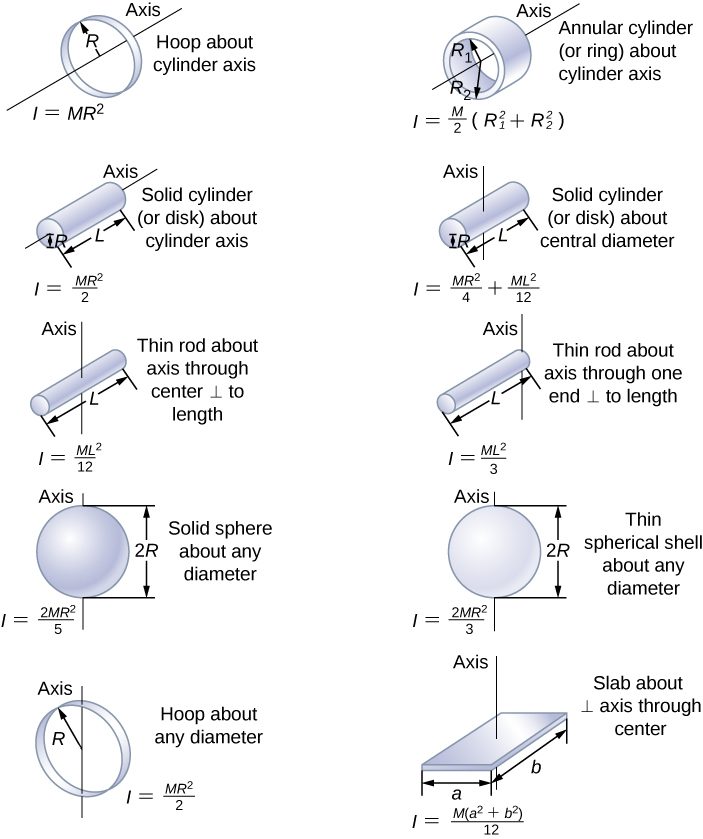

Figure shows ten rotating objects. These are hoop rotating about cylinder axis, solid cylinder or disk rotating about cylinder axis, thin rod rotating about axis through center solid sphere rotating about diameter, hoop rotating about diameter, annular cylinder rotating about cylinder axis, solid cylinder or disk rotating about central diameter, thin road rotating about the axis through one end perpendicular to the length, thin spherical shell about any diameter, slab about perpendicular axis through center. — **Figure 10.20** Moment of inertia for common shapes of objects.

Applying Rotational Kinetic Energy

Now let’s apply the ideas of rotational kinetic energy and the moment of inertia table to get a feeling for the energy associated with a few rotating objects. The following examples will also help get you comfortable using these equations. First, let’s look at a general problem-solving strategy for rotational energy.

Example 2 Calculating Helicopter Energies

A typical small rescue helicopter has four blades: Each is 4.00 m long and has a mass of 50.0 kg (Figure 10.21). The blades can be approximated as thin rods that rotate about one end of an axis perpendicular to their length. The helicopter has a total loaded mass of 1000 kg. (a) Calculate the rotational kinetic energy in the blades when they rotate at 300 rpm. (b) Calculate the translational kinetic energy of the helicopter when it flies at 20.0 m/s, and compare it with the rotational energy in the blades.

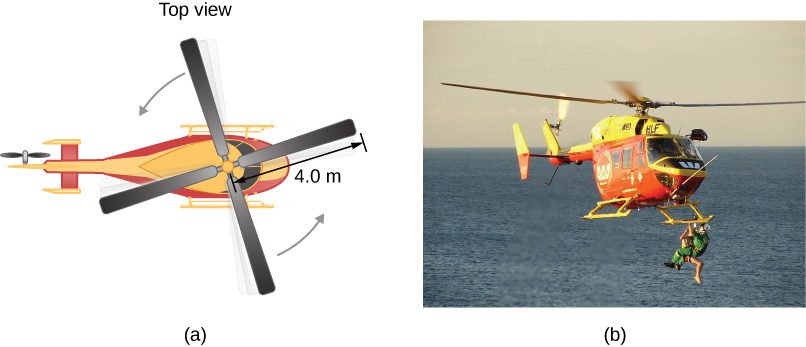

Figure 10.21 (a) Sketch of a four-blade helicopter. (b) A water rescue operation featuring a helicopter from the Auckland Westpac Rescue Helicopter Service.(a) Sketch of a four-blade helicopter. (b) A water rescue operation featuring a helicopter from the Auckland Westpac Rescue Helicopter Service. (credit b: modification of work by “111 Emergency”/Flickr)

Strategy Rotational and translational kinetic energies can be calculated from their definitions. The wording of the problem gives all the necessary constants to evaluate the expressions for the rotational and translational kinetic energies.

Solution

The rotational kinetic energy is
$K = \frac{1}{2} I ω^{2} .$
We must convert the angular velocity to radians per second and calculate the moment of inertia before we can find K. The angular velocity $ω$ is
$ω = \frac{300 rev}{1.00 min} \frac{2 π rad}{1 rev} \frac{1.00 min}{60.0 s} = 31.4 \frac{rad}{s} .$
The moment of inertia of one blade is that of a thin rod rotated about its end, listed in Figure 10.20. The total I is four times this moment of inertia because there are four blades. Thus,
$I = 4 \frac{M L^{2}}{3} = 4 \times \frac{(50.0 kg) {(4.00 m)}^{2}}{3} = 1067.0 kg \cdot m^{2} .$
Entering $ω$ and I into the expression for rotational kinetic energy gives
$K = 0.5 (1067 kg \cdot m^{2}) {(31.4 rad/s)}^{2} = 5.26 \times 10^{5} J .$
Entering the given values into the equation for translational kinetic energy, we obtain
$K = \frac{1}{2} m v^{2} = (0.5) (1000.0 kg) {(20.0 m/s)}^{2} = 2.00 \times 10^{5} J .$
To compare kinetic energies, we take the ratio of translational kinetic energy to rotational kinetic energy. This ratio is
$\frac{2.00 \times 10^{5} J}{5.26 \times 10^{5} J} = 0.380 .$

Significance The ratio of translational energy to rotational kinetic energy is only 0.380. This ratio tells us that most of the kinetic energy of the helicopter is in its spinning blades.

Example 3 Energy in a Baton

A person hurls a baton into the air with a velocity of 30.0 m/s at an angle of $40.0 °$ with respect to the horizontal (Figure 10.22). It has a mass of 1.0 kg and is rotating at 10.0 rev/s. The moment of inertia of the baton is given as $I = \frac{1}{12} m L^{2}$ where $L equals 0.7 m$ . (a) What is the total energy of the baton when it leaves the hand? (b) How high does the baton go from the elevation of the hand, neglecting air resistance?

Figure 10.22 A baton is hurled into the air at an initial angle of

40 °

Strategy We use the definitions of rotational and linear kinetic energy to find the total energy of the system. The problem states to neglect air resistance, so we don’t have to worry about energy loss. In part (b), we use conservation of mechanical energy to find the maximum height of the baton.

Solution

Moment of inertia: $I = \frac{1}{12} m L^{2} = \frac{1}{12} (1.0 kg) (0.7 {m)}^{2} = 0.041 kg \cdot m^{2}$ .
Angular velocity: $ω = (10.0 rev / s) (2 π) = 62.83 rad / s$ .
The rotational kinetic energy is therefore
$K_{R} = \frac{1}{2} (0.041 kg \cdot m^{2}) {(62.83 rad / s)}^{2} = 80.93 J .$
The translational kinetic energy is
$K_{T} = \frac{1}{2} m v^{2} = \frac{1}{2} (1.0 kg) (30.0 m / s)^{2} = 450.0 J .$
Thus, the total energy in the baton is
$K_{Total} = K_{R} + K_{T} = 80.93 + 450.0 = 530.93 J .$
We use conservation of mechanical energy. Since the baton is launched at an angle, we need to write the total energies of the system in terms of its linear kinetic energies using the velocity in the x- and y-directions. The total energy when the baton leaves the hand is
$E_{Before} = \frac{1}{2} m v_{x}^{2} + \frac{1}{2} m v_{y}^{2} + \frac{1}{2} I ω^{2} .$
The total energy at maximum height is
$E_{Final} = \frac{1}{2} m v_{x}^{2} + \frac{1}{2} I ω^{2} + m g h .$
By conservation of mechanical energy, $E_{Before} = E_{Final}$ so we have, after canceling like terms,
$\frac{1}{2} m v_{y}^{2} = m g h .$
Since $v_{y} = 30.0 m / s (sin 40 °) = 19.28 m / s$ , we find
$h = \frac{{(19.28 m / s)}^{2}}{2 (9.8 m / s^{2})} = 18.97 m .$

Significance In part (b), the solution demonstrates how energy conservation is an alternative method to solve a problem that normally would be solved using kinematics. In the absence of air resistance, the rotational kinetic energy was not a factor in the solution for the maximum height.

Summary

The rotational kinetic energy is the kinetic energy of rotation of a rotating rigid body or system of particles, and is given by $K = \frac{1}{2} I ω^{2}$ , where I is the moment of inertia, or “rotational mass” of the rigid body or system of particles.
The moment of inertia for a system of point particles rotating about a fixed axis is $I equals ∑ j m sub j r j 2$ , where $m_{j}$ is the mass of the point particle and $r_{j}$ is the distance of the point particle to the rotation axis. Because of the $r^{2}$ term, the moment of inertia increases as the square of the distance to the fixed rotational axis. The moment of inertia is the rotational counterpart to the mass in linear motion.
In systems that are both rotating and translating, conservation of mechanical energy can be used if there are no nonconservative forces at work. The total mechanical energy is then conserved and is the sum of the rotational and translational kinetic energies, and the gravitational potential energy.

Conceptual Questions

What if another planet the same size as Earth were put into orbit around the Sun along with Earth. Would the moment of inertia of the system increase, decrease, or stay the same?

A solid sphere is rotating about an axis through its center at a constant rotation rate. Another hollow sphere of the same mass and radius is rotating about its axis through the center at the same rotation rate. Which sphere has a greater rotational kinetic energy?

The hollow sphere, since the mass is distributed further away from the rotation axis.

Problems

A system of point particles is shown in the following figure. Each particle has mass 0.3 kg and they all lie in the same plane. (a) What is the moment of inertia of the system about the given axis? (b) If the system rotates at 5 rev/s, what is its rotational kinetic energy?

Figure shows an XYZ coordinate system. Three particles are located on the X axis at 20 cm from the center, at an Y axis at 60 centimeters from the center and at a Z axis at 40 centimeters from the center.

(a) Calculate the rotational kinetic energy of Earth on its axis. (b) What is the rotational kinetic energy of Earth in its orbit around the Sun?

a. $K = 2.56 \times 10^{29} J;$
b. $K = 2.68 \times 10^{33} J$

Calculate the rotational kinetic energy of a 12-kg motorcycle wheel if its angular velocity is 120 rad/s and its inner radius is 0.280 m and outer radius 0.330 m.

A baseball pitcher throws the ball in a motion where there is rotation of the forearm about the elbow joint as well as other movements. If the linear velocity of the ball relative to the elbow joint is 20.0 m/s at a distance of 0.480 m from the joint and the moment of inertia of the forearm is $0.500 kg-m squared$ , what is the rotational kinetic energy of the forearm?

$K equals 434.0 J$

A diver goes into a somersault during a dive by tucking her limbs. If her rotational kinetic energy is 100 J and her moment of inertia in the tuck is $9.0 kg times m squared$ , what is her rotational rate during the somersault?

An aircraft is coming in for a landing at 300 meters height when the propeller falls off. The aircraft is flying at 40.0 m/s horizontally. The propeller has a rotation rate of 20 rev/s, a moment of inertia of $70.0 kg-m squared$ , and a mass of 200 kg. Neglect air resistance so the rotation rate does not change as the propeller falls. (a) With what translational velocity does the propeller hit the ground? (b) What is the rotation rate of the propeller at impact?

a. $v sub f equals 86.5 m / s$ ;
b. The rotational rate of the propeller stays the same at 20 rev/s.

An aircraft is coming in for a landing at 300 meters height when the propeller falls off. When it comes off, the propeller has a rotation rate of 20 rev/s, a moment of inertia of $70.0 kg-m squared$ , and a mass of 200 kg. If air resistance is present and reduces the propeller’s rotational kinetic energy at impact by 30%, what is the propeller’s rotation rate at impact?

A neutron star of mass $2 \times 10^{30} kg$ and radius 10 km rotates with a period of 0.02 seconds. What is its rotational kinetic energy?

$K = 3.95 \times 10^{42} J$

An electric sander consisting of a rotating disk of mass 0.7 kg and radius 10 cm rotates at 15 rev/s. When applied to a rough wooden wall the rotation rate decreases by 20%. (a) What is the final rotational kinetic energy of the rotating disk? (b) How much has its rotational kinetic energy decreased?

A system consists of a disk of mass 2.0 kg and radius 50 cm upon which is mounted an annular cylinder of mass 1.0 kg with inner radius 20 cm and outer radius 30 cm (see below). The system rotates about an axis through the center of the disk and annular cylinder at 10 rev/s. (a) What is the moment of inertia of the system? (b) What is its rotational kinetic energy?

Figure shows a disk of radius 50 cm upon which is mounted an annular cylinder with inner radius 20 cm and outer radius 30 cm

a. $I = 0.315 kg \cdot m^{2}$ ;
b. $K equals 621.8 J$
