6.2 The Circular Functions

Trigonometric Functions of Angles in Radians

Measuring angles in radians has other applications besides calculating arclength, and we will need to evaluate trigonometric functions of angles in radians. The sine, cosine, or tangent of a particular angle is the same whether the angle is measured in radians or in degrees.

In Section 4.1 we saw that the sine and cosine are related to points on a unit circle.

This fact follows easily from the definitions of sine and cosine, because on a unit circle $r equals 1$ . In the next Activity we'll use this relationship to get a feel for the trig values of angles in radians.

Using a Calculator

Your calculator can give you the trigonometric function values for angles expressed in radians. For example, $\frac{π}{3}$ radians is the same as $60 degrees$ , because $\frac{π}{3} \cdot \frac{180^{\circ}}{π} = 60^{\circ}$ , so

$\sin (\frac{π}{3}) = \sin (60^{\circ}) = \frac{\sqrt{3}}{2}$

However, we don't have to convert radians to degrees in order to evaluate trig ratios. First, change the calculator setting from Degree mode to Radian mode. Then enter

$sin ⁡ open parenthesis π divided by 3 close parenthesis$

and the calculator will return $0.8660254038$ . You can check that this number is a decimal approximation for $\frac{\sqrt{3}}{2}$ .

Example 1

Use your calculator to find the sine and cosine of the following angles in radians. Round your answers to four decimal places.

$θ = \frac{7 π}{4}$
$θ equals 3.5$

With the calculator in radian mode, and rounding to four decimal places we find
$\begin{aligned} \cos (7 π / 4) & = 0.7071 \\ \sin (7 π / 4) & = - 0.7071 \end{aligned}$
Your calculator will also give you the values
$\begin{aligned} \cos (3.5) & = - 0.9365 \\ \sin (3.5) & = - 0.3508 \end{aligned}$
rounded to four places. Note that 3.5 radians is a third-quadrant angle, so the signs of the trig values make sense.

Use your calculator to find the tangents of the following angles in radians. Round your answers to four decimal places.

$θ = \frac{5 π}{12}$
$θ equals 5.2$

$3.7321$
$minus 1.8856$

If two angles are coterminal they have the same trig values, just as they do when measured in degrees. So adding or subtracting a multiple of $2 π$ to any angle results in a new angle in the same standard position and with the same trig values.

Example 2

Find the sine and cosine of the following angles in radians. Round your answers to four decimal places.

$θ = \frac{5 π}{2}$
$θ = - 4$

Because $\frac{5 π}{2} = 2 π + \frac{π}{2},$ $θ$ is coterminal with $\frac{π}{2},$ and it has the same sine and cosine as $\frac{π}{2}$ . And $\frac{π}{2}$ radians is equal to $90 degrees$ , so
$\begin{matrix} \sin (θ) = \sin (\frac{π}{2}) = 1 \\ \cos (θ) = \cos (\frac{π}{2}) = 0 \end{matrix}$
Rounded to four places, your calculator will give you the values
$\begin{aligned} \cos (- 4) & = - 0.6536 \\ \sin (- 4) & = 0.7568 \end{aligned}$
By adding $6.2832$ (that's approximately $2 π$ ) to $minus 4$ we see that $minus 4$ radians is coterminal with $2.2832$ radians, a second-quadrant angle. You can check that $2.2832$ radians has (approximately) the same trig values as $minus 4$ radians.

Use your calculator to find the tangent of the following angles in radians. Round your answers to four decimal places.

$θ = - \frac{3 π}{4}$
$θ equals 15$

$1$
$minus 0.8560$

Recall the formula for arclength when the angle is measured in radians: $s = r θ$ . If we solve for $θ$ , we see that $θ = \frac{s}{r}$ , a ratio of two lengths. The units of length cancel out, so that radian measure has no units; it is a "dimensionless" quantity. In other words, a radian measure is just a real number.

We shall see that this property makes radians especially useful in applications. From now on we shall omit the tag "radians," and you may assume that any angle given without units is in radians.

Sine and Cosine of Real Numbers

We have observed that the measure of an angle in radians is just a real number. This is an important observation, because it allows us to define the sine and cosine as functions of real numbers, instead of as functions of angles.

We can think of the definition this way: to find the sine or cosine of a real number $t$ , we find the sine or cosine of the angle $θ = t$ in radians.

Note

To understand the connection between real numbers and radians, you may find it helpful to remember that the measure of a positive angle in radians is equal to the length of the arc it spans on a unit circle.

Consider the unit circle shown at right, and the angle $θ$ determined by the arc of length $t$ . The radian measure of $θ$ is the same as the length $t$ of the arc. (For example, in this figure $θ = t = 2$ .)

In practice, there is no difference between finding the sine or cosine of the number 2 and the sine or cosine of an angle of 2 radians: in each case we set the calculator in Radian mode and evaluate

$\cos (2) = - 0.4161 and \sin (2) = 0.9093$

So, in some sense then, a trig function of a radian is the same as a trig function of a real number. This result is so important that it bears repeating: to find the sine or cosine of a real number $t$ , we find the sine or cosine of the angle $t$ radians. We can now use the trigonometric functions to model periodic behavior as functions of time, or indeed, of any variable.

Example 3

The sunset time in Stockholm, Sweden, on the $n$ th day of the year can be modeled by

$T = 3.11 \sin (0.017 n - 1.38) + 6.03$

where $T$ is given in hours after noon. Find the sunset time on January 1 (day $n equals 1$ ) and on July 1 (day $n equals 182$ ).

Evaluate the function for $n equals 1$ to find

$T = 3.11 \sin (0.017 (1) - 1.38) + 6.03 = 2.99$

On January 1, sunset in Stockholm occurs about 2.99 hours after noon, or at 2:59 pm.

Evaluate the function at $n equals 182$ to find

$T = 3.11 \sin (0.017 (182) - 1.38) + 6.03 = 9.11$

On July 1, sunset occurs about 9.11 hours after noon, or at 9:07 pm. (Actually, 10:07 pm, because of daylight savings time.)

Variable stars are important in astronomy because they are used to estimate distances. Their magnitude, or brightness, varies periodically and can be modeled by trigonometric functions. The star T Herculis reached its minimum magnitude on December 27, 2004, and $t$ days later its magnitude is approximately

$M = 10.2 - 2.2 \cos (0.038 t)$

What was the magnitude of T Herculis on December 27, 2004?
What was the magnitude of T Herculis be on December 27, 2006 (730 days later)?

$8$
$12.09$

The Tangent Function

We can also define the tangent function for real numbers. Let $P (x, y)$ be the terminal point of an arc of length $t$ in standard position on a unit circle. Then

$\tan (t) = \frac{y}{x}$

Of course, this definition agrees with our earlier definition of the tangent function for angles, because the point $P$ lies on the terminal side of the angle $θ = t$ radians.

For example, we saw earlier that, rounded to four decimal places,

$\cos (2) = - 0.4161 and \sin (2) = 0.9093$

so the coordinates of point $P$ on the unit circle in the figure at right are $open parenthesis minus 0.4161, 0.9093 close parenthesis$ . Therefore,

$\tan (2) = \frac{0.9093}{- 0.4161} = - 2.1853$

You can set your calculator in radian mode to verify that, to three decimal places,

$\tan (2) = - 2.185$

Because the trig values can be found as coordinates on a unit circle, our three trig functions are often called the circular functions. We now have the following definitions for the circular functions of real numbers.

Function graph showing the parametric curve (cos(t), sin(t)) for t in [0, 6.28], the parametric curve (t*cos(s), t*sin(s)) for t in [0, 1], the parametric curve (cos(s) + 0.06*cos(t), sin(s) + 0.06*sin(t)) for t in [0, 6.28] and the parametric curve (cos(s), t*sin(s)) for t in [0, 1]. Adjustable parameter: Arclength t (s) = 1. Viewing window: x from -2.53 to 2.53, y from -1.57 to 1.57. — Why they are called circular functions. The slider sets an arclength t, measured counterclockwise from (1, 0) around a unit circle; the marked terminal point has coordinates (cos t, sin t) — the cosine is how far right the point sits, the sine (the dashed drop) is exactly its height. Drag t through 1.57 (≈ π/2) to watch the sine reach 1 as the point passes the top of the circle, and on past 3.14 (≈ π) to see both coordinates go negative in the third quadrant. One full trip around the circle is t = 2π ≈ 6.28, the circumference — which is why every circular function repeats with period 2π.

Note

The Circular Functions

Let $P$ be the terminal point of an arc of length $t$ in standard position on a unit circle. The circular functions of $t$ are defined by

$\begin{aligned} \cos (t) & = x \\ \sin (t) & = y \\ \tan (t) & = \frac{y}{x}, x \neq 0 \end{aligned}$

Example 4

Use the graph of the unit circle shown below to estimate $cos ⁡ open parenthesis 2.5 close parenthesis, sin ⁡ open parenthesis 2.5 close parenthesis$ , and $tan ⁡ open parenthesis 2.5 close parenthesis$ .

The circle is scaled in units of 0.1 radians, and an arc of 2.5 radians in standard position has its terminal point, $P$ , in the second quadrant. The coordinates of $P$ are approximately $open parenthesis minus 0.8, 0.6 close parenthesis$ , so we have

$\cos (2.5) = - 0.8 and \sin (2.5) = 0.6$

To find $tan ⁡ open parenthesis 2.5 close parenthesis$ , we calculate $\frac{y}{x}$ .

$\tan (2.5) = \frac{y}{x} = \frac{0.6}{- 0.8} = - 0.75$

Use the graph of the unit circle in the previous example to estimate $cos ⁡ open parenthesis 4.2 close parenthesis, sin ⁡ open parenthesis 4.2 close parenthesis$ , and $tan ⁡ open parenthesis 4.2 close parenthesis$ .

$\cos (4.2) \approx - 0.49$ , $\sin (4.2) \approx - 0.87$ , $tan ⁡ open parenthesis 4.2 close parenthesis approximately equals 1.78$

The Special Values

In Chapter 2 you learned the exact trig values for the "special angles" $30 degrees, 45 degrees$ and $60 degrees$ . Recall that the trig values for these angles can be used as benchmarks for estimating and mental calculation. Now we review those values when the angles are measured in radians.

The easiest way to remember the special values is to refer to the sides of the two special triangles:

Degrees	Radians	Sine	Cosine	Tangent
$0 degrees$	$0$	$0$	$1$	$0$
$30 degrees$	$\frac{π}{6}$	$\frac{1}{2}$	$\frac{\sqrt{3}}{2}$	$\frac{1}{\sqrt{3}}$
$45 degrees$	$\frac{π}{4}$	$\frac{1}{\sqrt{2}}$	$\frac{1}{\sqrt{2}}$	$1$
$60 degrees$	$\frac{π}{3}$	$\frac{\sqrt{3}}{2}$	$\frac{1}{2}$	$the square root of 3$
$90 degrees$	$\frac{π}{2}$	$1$	$0$	undefined

You can use these values to find trig values for the special angles in all four quadrants.

Recall that we use reference angles to define the trigonometric ratios for angles greater than $90 degrees$ . (See Section 4.1 to review reference angles.) The figure below shows how to calculate reference angles in radians. Note that the formulas are the same as those for degrees if we replace $180 degrees$ by $π$ !

Example 5

Give exact values for the following.

$\tan (\frac{2 π}{3})$
$\cos (\frac{5 π}{4})$

The reference angle for $\frac{2 π}{3}$ is $π - \frac{2 π}{3} = \frac{π}{3}$ , and the tangent is negative in the second quadrant. (See the figure at right.) Thus,
$\tan (\frac{2 π}{3}) = - \tan (\frac{π}{3}) = - \sqrt{3}$
The reference angle for $\frac{5 π}{4}$ is $\frac{5 π}{4} - π = \frac{π}{4}$ , and the cosine is negative in the third quadrant, so
$\cos (\frac{5 π}{4}) = - \cos (\frac{π}{4}) = \frac{- 1}{\sqrt{2}}$

Give exact values for the following.

$\sin (\frac{5 π}{6})$
$\tan (\frac{7 π}{4})$

$\frac{1}{2}$
$minus 1$

Activity

Special Angles in Radians

Here is a unit circle with arclengths labeled, measured counterclockwise from $open parenthesis 1, 0 close parenthesis$ .

Give a decimal approximation to two places for each angle, then the degree measure of each.

Radians	$0$	$\frac{π}{6}$	$\frac{π}{4}$	$\frac{π}{3}$	$\frac{π}{2}$	$\frac{2 π}{3}$	$\frac{3 π}{4}$	$\frac{5 π}{6}$	$π$
Decimal Approx.
Degrees

Radians	$π$	$\frac{7 π}{6}$	$\frac{5 π}{4}$	$\frac{4 π}{3}$	$\frac{3 π}{2}$	$\frac{5 π}{3}$	$\frac{7 π}{4}$	$\frac{11 π}{6}$	$2 π$
Decimal Approx.
Degrees

On the unit circle above, plot the endpoint of each arc in standard position.
1. $\frac{π}{3}$
2. $\frac{7 π}{6}$
3. $\frac{7 π}{4}$
Use the unit circle to estimate the sine, cosine and tangent for each angle in part (2). Then compare your estimate with the exact trig value.

Example 6

Find the coordinates of the terminal point, $P$ , of an arc of length $t = \frac{5 π}{6}$ starting at $open parenthesis 1, 0 close parenthesis$ on a unit circle.

The coordinates of $P$ are $(\cos \frac{5 π}{6}, \sin \frac{5 π}{6})$ , so

$\begin{aligned} x & = \cos (\frac{5 π}{6}) = \frac{- \sqrt{3}}{2} \\ y & = \sin (\frac{5 π}{6}) = \frac{1}{2} \end{aligned}$

Thus, the coordinates of $P$ are $(\frac{- \sqrt{3}}{2}, \frac{1}{2})$ , as shown at right.

Find the coordinates of the terminal point, $P$ , of an arc of length $t = \frac{π}{3}$ starting at $open parenthesis 1, 0 close parenthesis$ on a unit circle.

$(\frac{1}{2}, \frac{\sqrt{3}}{2})$

Review the following skills you will need for this section.

Algebra Refresher

Simplify.

1. $\frac{2}{3} + \frac{1}{6}$
2. $\frac{2 x}{3} + \frac{x}{6}$
1. $\frac{3}{4} - \frac{5}{8}$
2. $\frac{3 n}{4} - \frac{5 n}{8}$
1. $2 - \frac{3}{4}$
2. $2 b - \frac{3 b}{4}$
1. $1 + \frac{3}{8}$
2. $m + \frac{3 m}{8}$
1. $\frac{5}{6} - \frac{7}{6}$
2. $\frac{5 q}{6} - \frac{7 q}{6}$
1. $\frac{2}{3} - \frac{5}{3}$
2. $\frac{2 p}{3} - \frac{5 p}{3}$

$\underset{―}{}$

Algebra Refresher Answers

1. $\frac{5}{6}$
2. $\frac{5 x}{6}$
1. $\frac{1}{8}$
2. $\frac{n}{8}$
1. $\frac{5}{4}$
2. $\frac{5 b}{4}$
1. $\frac{11}{8}$
2. $\frac{11 m}{8}$
1. $\frac{- 1}{6}$
2. $\frac{- q}{6}$
1. $minus 1$
2. $- p$

Section 6.2 Summary

Vocabulary

Circular functions

Concepts

The sine, cosine, or tangent of a particular angle is the same whether the angle is measured in radians or in degrees.

You should memorize the trig values of the special angles in radians.

Degrees	Radians	Sine	Cosine	Tangent
$0 degrees$	$0$	$0$	$1$	$0$
$30 degrees$	$\frac{π}{6}$	$\frac{1}{2}$	$\frac{\sqrt{3}}{2}$	$\frac{1}{\sqrt{3}}$
$45 degrees$	$\frac{π}{4}$	$\frac{1}{\sqrt{2}}$	$\frac{1}{\sqrt{2}}$	$1$
$60 degrees$	$\frac{π}{3}$	$\frac{\sqrt{3}}{2}$	$\frac{1}{2}$	$the square root of 3$
$90 degrees$	$\frac{π}{2}$	$1$	$0$	undefined

To find the sine or cosine of a real number $t$ , we find the sine or cosine of the angle $θ = t$ in radians.
Note
Coordinates on a Unit Circle
The coordinates of the point $P$ determined by an arc of length $t$ in standard position on a unit circle are
$(x, y) = (\cos (t), \sin (t))$
Note
The Circular Functions
Let $P$ be the terminal point of an arc of length $t$ in standard position on a unit circle. The circular functions of $t$ are defined by
$\begin{aligned} \cos (t) & = x \\ \sin (t) & = y \\ \tan (t) & = \frac{y}{x}, x \neq 0 \end{aligned}$

Study Questions

Write each statement using decimal approximations to four places.
1. $\cos (\frac{π}{6}) = \frac{\sqrt{3}}{2}$
2. $\sin (\frac{5 π}{4}) = \frac{- 1}{\sqrt{2}}$
Sketch a figure on a unit circle to illustrate each equation.
1. $\sin (\frac{3 π}{4}) = 0.7071$
2. $\cos (2.5) = - 0.8011$
Write down the multiples of $\frac{π}{12}$ from $0$ to $2 π$ . Reduce each fraction.
On a unit circle, sketch arcs in standard position with the following lengths.
$s = \frac{π}{2}, s = \frac{3 π}{4}, s = \frac{π}{3}, s = \frac{2 π}{3}$

Skills

Know the trigonometric function values for the special angles in radians #1–4, 46–48
Use a unit circle to find trig values #5–30, 45–58
Find reference angles in radians #33–45
Evaluate trigonometric expressions #31–32, 49–54
Find coordinates on a unit circle #55–60, 67–68
Find an angle with a given terminal point on a unit circle #61–66
Use the tangent ratio to find slope #69–74
Find coordinates on a circle of radius #77–80

Homework 6.2

For Problems 1–4, each point on the unit circle is the terminal point of an angle in standard position. Give exact values for the radian measure, $t$ , of the angle, and the coordinates $(x, y)$ of the point.

	a	b	c	d
$t$
$x$
$y$

	a	b	c	d
$t$	$\frac{π}{4}$	$\frac{3 π}{4}$	$\frac{5 π}{4}$	$\frac{7 π}{4}$
$x$	$\frac{1}{\sqrt{2}}$	$\frac{- 1}{\sqrt{2}}$	$\frac{- 1}{\sqrt{2}}$	$\frac{1}{\sqrt{2}}$
$y$	$\frac{1}{\sqrt{2}}$	$\frac{1}{\sqrt{2}}$	$\frac{- 1}{\sqrt{2}}$	$\frac{- 1}{\sqrt{2}}$

	a	b	c	d
$t$
$x$
$y$

	a	b	c	d
$t$
$x$
$y$

	a	b	c	d
$t$	$\frac{π}{3}$	$\frac{2 π}{3}$	$\frac{4 π}{3}$	$\frac{5 π}{3}$
$x$	$\frac{1}{2}$	$\frac{- 1}{2}$	$\frac{- 1}{2}$	$\frac{1}{2}$
$y$	$\frac{\sqrt{3}}{2}$	$\frac{\sqrt{3}}{2}$	$\frac{- \sqrt{3}}{2}$	$\frac{- \sqrt{3}}{2}$

	a	b	c	d
$t$
$x$
$y$

For Problems 5–8, use the unit circle to estimate the sine, cosine, and tangent of each arc of given length.

$0.4$
$1.2$
$2$

$\sin (0.4) \approx 0.39, \cos (0.4) \approx 0.92, \tan (0.4) \approx 0.42$
$\sin (1.2) \approx 0.93, \cos (1.2) \approx 0.36, \tan (1.2) \approx 2.6$
$\sin (2) \approx 0.91, \cos (2) \approx - 0.42, \tan (2) \approx - 2.2$

$0.8$
$2.6$
$4$

$2.8$
$3.5$
$5$

$\sin (2.8) \approx 0.33, \cos (2.8) \approx - 0.94, \tan (2.8) \approx - 0.36$
$\sin (3.5) \approx - 0.35, \cos (3.5) \approx - 0.94, \tan (3.5) \approx 0.37$
$\sin (5) \approx - 0.96, \cos (5) \approx 0.28, \tan (5) \approx - 3.3$

$3$
$4.3$
$5.5$

For Problems 9–14, use the unit circle to estimate two numbers with the given trig value.

$cos ⁡ open parenthesis t close parenthesis equals 0.3$

$t approximately equals 1.27$ or $t approximately equals 5$

$sin ⁡ open parenthesis t close parenthesis equals 0.1$

$\sin (t) = - 0.7$

$t approximately equals 3.92$ or $t approximately equals 5.5$

$\cos (t) = - 0.6$

$\tan (t) = \frac{- 4}{9}$

$t approximately equals 2.72$ or $t approximately equals 5.87$

$\tan (t) = \frac{8}{6}$

Each of Problems 13–20 describes an arc in standard position on the unit circle. In which quadrant does the terminal point of the arc lie?

$sin ⁡ open parenthesis s close parenthesis greater than 0, cos ⁡ open parenthesis s close parenthesis less than 0$

$sin ⁡ open parenthesis s close parenthesis less than 0, cos ⁡ open parenthesis s close parenthesis greater than 0$

$cos ⁡ open parenthesis t close parenthesis less than 0, tan ⁡ open parenthesis t close parenthesis less than 0$

$cos ⁡ open parenthesis t close parenthesis greater than 0, tan ⁡ open parenthesis t close parenthesis less than 0$

$sin ⁡ open parenthesis x close parenthesis less than 0, tan ⁡ open parenthesis x close parenthesis greater than 0$

III

$sin ⁡ open parenthesis x close parenthesis greater than 0, tan ⁡ open parenthesis x close parenthesis less than 0$

For Problems 21–26, without using a calculator, decide whether the quantity is positive or negative.

$cos ⁡ open parenthesis 2.7 close parenthesis$

Negative

$sin ⁡ open parenthesis 4.1 close parenthesis$

$tan ⁡ open parenthesis 3.8 close parenthesis$

Positive

$tan ⁡ open parenthesis 5.4 close parenthesis$

$sin ⁡ open parenthesis 2.2 close parenthesis$

Positive

$cos ⁡ open parenthesis 4.9 close parenthesis$

For Problems 27–30, place the trig values in order from smallest to largest. Use the figure to help you, but try not to use a calculator!

$sin ⁡ open parenthesis 0.5 close parenthesis$ , $sin ⁡ open parenthesis 1.5 close parenthesis$ , $sin ⁡ open parenthesis 2.5 close parenthesis$ , $sin ⁡ open parenthesis 3.5 close parenthesis$

$sin ⁡ open parenthesis 3.5 close parenthesis$ , $sin ⁡ open parenthesis 0.5 close parenthesis$ , $sin ⁡ open parenthesis 2.5 close parenthesis$ , $sin ⁡ open parenthesis 1.5 close parenthesis$

$cos ⁡ open parenthesis 1.6 close parenthesis$ , $cos ⁡ open parenthesis 2.6 close parenthesis$ , $cos ⁡ open parenthesis 3.6 close parenthesis$ , $cos ⁡ open parenthesis 5.6 close parenthesis$

$cos ⁡ open parenthesis 2 close parenthesis$ , $cos ⁡ open parenthesis 3 close parenthesis$ , $cos ⁡ open parenthesis 4 close parenthesis$ , $cos ⁡ open parenthesis 5 close parenthesis$

$cos ⁡ open parenthesis 3 close parenthesis$ , $cos ⁡ open parenthesis 4 close parenthesis$ , $cos ⁡ open parenthesis 2 close parenthesis$ , $cos ⁡ open parenthesis 5 close parenthesis$

$sin ⁡ open parenthesis 2.8 close parenthesis$ , $sin ⁡ open parenthesis 3.8 close parenthesis$ , $sin ⁡ open parenthesis 4.8 close parenthesis$ , $sin ⁡ open parenthesis 5.8 close parenthesis$

The sunrise time in Wellington, New Zealand, on the $n$ th day of the year can be modeled by

$S = 1.93 \sin (0.016 n - 1.13) + 6.14$

where $S$ is given in hours after midnight. Find the sunrise time on January 1 (day $n equals 1$ ), April 1 (day $n equals 91$ ), July 1 (day $n equals 182$ ), and on October 1 (day $n equals 274$ ).

January 1: 4:24, April 1: 6:45, July 1: 8:02, October 1: 5:55

The variable star RT Cygni reached its maximum magnitude on May 22, 2004, and $t$ days later its magnitude is given by

$M = 9.55 - 2.25 \cos (0.033 t)$

Find the magnitude of RT Cygni on days $t = 0, t = 48, t = 95, t = 142,$ and $t equals 190$ . (Note that smaller values of $M$ denote brighter magnitudes.)

For Problems 33–38, find the reference angle in radians, rounded to two decimal places.

$1.8$

$1.34$

$4.9$

$minus 2.3$

$0.84$

$minus 6.0$

$9.4$

$0.02$

$7.1$

For Problems 39–44, find the reference angle in radians, expressed as a multiple of $π$ .

$\frac{11 π}{12}$

$\frac{1}{12} π$

$\frac{11 π}{8}$

$\frac{4 π}{3}$

$\frac{1}{3} π$

$\frac{7 π}{6}$

$\frac{13 π}{4}$

$\frac{1}{4} π$

$\frac{8 π}{3}$

Find three angles in radians between $0$ and $2 π$ with the given reference angle. Sketch all the angles on a unit circle.

$\frac{π}{6}$
$\frac{π}{4}$
$\frac{π}{3}$

$\frac{5 π}{6}$ , $\frac{7 π}{6}$ , $\frac{11 π}{6}$
$\frac{3 π}{4}$ , $\frac{5 π}{4}$ , $\frac{7 π}{4}$
$\frac{2 π}{3}$ , $\frac{4 π}{3}$ , $\frac{5 π}{3}$

Complete the table.

$θ$	$\sin (θ)$	$\cos (θ)$	$\tan (θ)$
$\frac{2 π}{3}$
$\frac{3 π}{4}$
$\frac{5 π}{6}$

Complete the table.

$θ$	$\sin (θ)$	$\cos (θ)$	$\tan (θ)$
$\frac{7 π}{6}$
$\frac{5 π}{4}$
$\frac{4 π}{3}$

$θ$	$\sin (θ)$	$\cos (θ)$	$\tan (θ)$
$\frac{7 π}{6}$	$\frac{- 1}{2}$	$\frac{- \sqrt{3}}{2}$	$\frac{1}{\sqrt{3}}$
$\frac{5 π}{4}$	$\frac{- 1}{\sqrt{2}}$	$\frac{- 1}{\sqrt{2}}$	$1$
$\frac{4 π}{3}$	$\frac{- \sqrt{3}}{2}$	$\frac{- 1}{2}$	$the square root of 3$

Complete the table.

$θ$	$\sin (θ)$	$\cos (θ)$	$\tan (θ)$
$\frac{5 π}{3}$
$\frac{7 π}{4}$
$\frac{11 π}{6}$

For Problems 49–54, evaluate the expression exactly.

$\cos (\frac{π}{3}) \sin (\frac{π}{6})$

$\frac{1}{4}$

$\sin (\frac{π}{4}) \tan (\frac{π}{3})$

$\tan (\frac{5 π}{6}) + \tan (\frac{7 π}{4})$

$- \frac{3 + \sqrt{3}}{3}$

$\cos (\frac{3 π}{4}) - \cos (\frac{5 π}{3})$

$\cos^{2} (\frac{11 π}{6}) - 3 \cos (\frac{11 π}{6})$

$\frac{3 - 6 \sqrt{3}}{4}$

$2 \sin (\frac{4 π}{3}) - \sin^{2} (\frac{4 π}{3})$

Starting at $open parenthesis 1, 0 close parenthesis$ , you walk $s$ units around a unit circle. For Problems 55–58, sketch a unit circle showing your position. What are your coordinates?

$s equals 2.5$

$(\cos (2.5), \sin (2.5)) \approx (- 0.8, 0.6)$

$s equals 4.3$

$s equals 8.5$

$(\cos (8.5), \sin (8.5)) \approx (- 0.6, 0.8)$

$s equals 11$

City Park features a circular jogging track of radius 1 mile, centered on the open-air bandstand. You start jogging on the track 1 mile due east of the bandstand and proceed counterclockwise. What are your coordinates, relative to the bandstand, when you have jogged five miles?

$cos ⁡ open parenthesis 5 close parenthesis approximately equals 0.28$ mi east, $\sin (5) \approx - 0.96$ mi north, or about 0.96 mi south

Silver Reservoir is a circular man-made lake of radius 1 kilometer. If you start at the easternmost point on the reservoir and walk counterclockwise for 4 kilometers, how far south of your intial position are you?

For Problems 61–66, find the angle in radians between $0$ and $2 π$ determined by the terminal point on the unit circle. Round your answer to hundredths.

$open parenthesis minus 0.1782, 0.9840 close parenthesis$

$1.75$

$(- 0.8968, - 0.4425)$

$open parenthesis 0.8855, minus 0.4646 close parenthesis$

$5.8$

$open parenthesis 0.9801, 0.1987 close parenthesis$

$(- 0.7659, - 0.6430)$

$3.84$

$open parenthesis 0.9602, minus 0.2794 close parenthesis$

Sketch a unit circle and the line $y = x$ . Find the coordinates of the two points where the line and the circle intersect.
State your answers to part (a) using trigonometric functions.

Intersections: $(\frac{1}{\sqrt{2}}, \frac{1}{\sqrt{2}})$ and $(\frac{- 1}{\sqrt{2}}, \frac{- 1}{\sqrt{2}})$
$(\cos (\frac{π}{4}), \sin (\frac{π}{4}))$ and $(\cos (\frac{5 π}{4}), \sin (\frac{5 π}{4}))$

Sketch a unit circle and the line $y = - x$ . Find the coordinates of the two points where the line and the circle intersect.
State your answers to part (a) using trigonometric functions.

Sketch a line that passes through the origin and the point $open parenthesis 8, 3 close parenthesis$ . What is the slope of the line?
What is the angle of inclination of the line in radians, measured from the positive $x$ -axis?

$m = \frac{3}{8}$
$\tan^{- 1} (\frac{3}{8}) \approx 0.3588$

Sketch a line that passes through the origin and the point $open parenthesis 3, 8 close parenthesis$ . What is the slope of the line?
What is the angle of inclination of the line in radians, measured from the positive $x$ -axis?

For Problems 71–74, find an equation for the line with the given angle of inclination, passing through the given point. (See Section 4.3 to review angle of inclination.)

$α = \frac{π}{3}, (4, 2)$

$y - 2 = \sqrt{3} (x - 4)$

$α = \frac{5 π}{6}, (- 6, 3)$

$α = 2.4, (5, - 8)$

$y + 8 = (\tan (2.4)) ((x - 5)$ or $y + 8 = - 0.916 (x - 5)$

$α = 0.6, (- 2, - 3)$

Use similar triangles to show that the coordinates of point $P$ on the unit circle shown at right are $(\cos (t), \sin (t))$ .

Any point $(x, y)$ on the terminal side of $θ$ satisfies $\cos (θ) = \frac{x}{r}$ , $\sin (θ) = \frac{y}{r}$ . For the point $P$ where $r equals 1$ , $\cos (θ) = x$ , $\sin (θ) = y$ . The arc of length $t$ is spanned by an angle $θ$ in standard position. Because arclength is $r θ$ and $r equals 1$ , $t = θ,$ so $x = \cos (t)$ , $y = \sin (t)$ .

Use similar triangles to show that $S T = \tan (t)$ .

Use the results of Problem 77 for for Problems 78–80.

Use similar triangles to show that the coordinates of a point $P$ determined by angle $θ$ on a circle of radius $r$ are $x = r \cos (θ), y = r \sin (θ)$ . (See the figure at right.)

The two right triangles shown are similar, so their sides are proportional. The hypotenuse of the large triangle is $r$ times the hypotenuse of the small triangle, so the two legs of the large triangle must be $r$ times the legs of the small triangle. Thus, because the coordinates of the vertex on the unit circle are $(\cos (θ), \sin (θ))$ , the coordinates of $P$ must be $(r \cos (θ), r \sin (θ))$ .

The Astrodome in Houston has a diameter of 710 feet. If you start at the easternmost point and walk counterclockwise around its perimeter for a distance of 250 feet, how far north of your starting point are you?

The Barringer meteor crater near Winslow, Arizona is 1182 meters in diameter. You start at the easternmost point on the rim of the crater and walk counterclockwise around the edge. After walking for 1 kilometer, what is your position relative to your starting point

71 m west, 587 m north

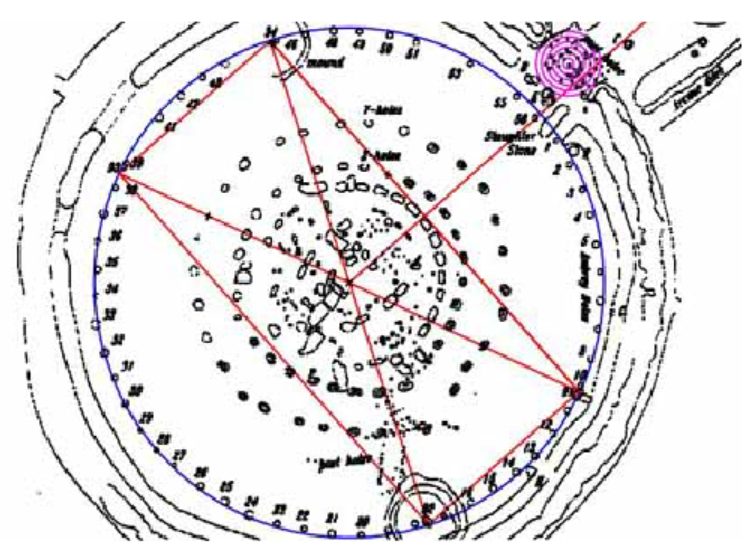

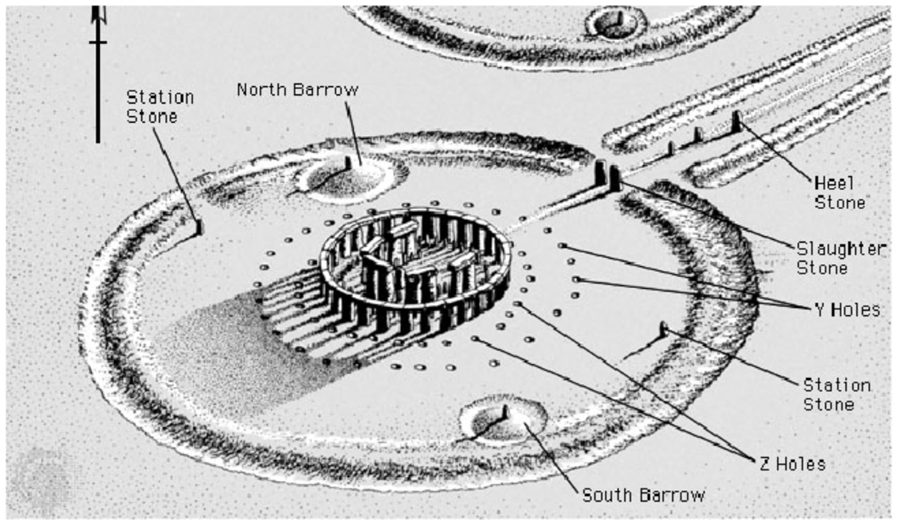

One of the most intriguing features of Stonehenge is the position of the four Station Stones.

They form the corners of a rectangle inscribed in the Aubrey Circle on the perimeter of the henge, which has diameter 288 feet. A line from the center of the circle and perpendicular to the long edge of the rectangle points through the Slaughter Stones at the entrance of the henge and out to the Heel Stone. If you stood in the center of the circle on the summer solstice, you would see the sun rise directly over the Heel Stone.

The sun rises $48.6 degrees$ east of north on the summer solstice at Stonehenge. If the positive $y$ -axis points north, find the coordinates of the henge entrance relative to its center.
The northernmost station stone is located $66.6 degrees$ of arc counterclockwise from the entrance. Find its coordinates relative to the center of the henge.

Trigonometry by Katherine Yoshiwara (yoshiwarabooks.org), GNU Free Documentation License 1.2 or later. Adapted for the XYZ HTML edition with the authors' permission (recorded 2026-07-04). License: GFDL-1.2-or-later.
