11.3 Multi-Dimensional Models

It is straightforward then to include more than one parameter and to do regression using this technique. For example, here is an example with some artificial data,

def linear(x,a,b):
    return a*x+b

model=MCMCModel_Regression(x,y,linear,
                a=Uniform(-10,10),
                b=Uniform(0,100),
                )

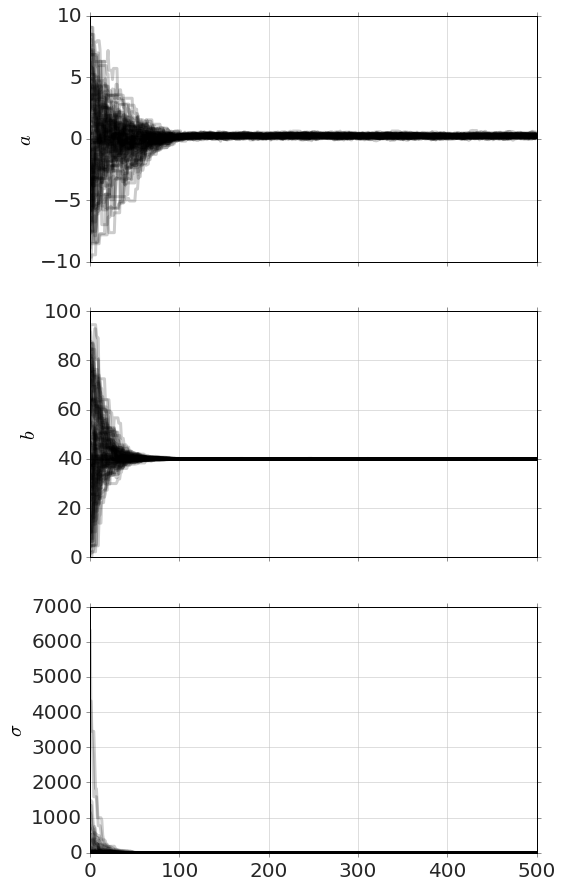

Three stacked chain plots for the straight-line model parameters a, b and the noise σ over 500 steps. Each set of traces starts widely scattered (b as far as 0-100, σ in the thousands) and collapses within about 100 steps into narrow horizontal bands near a≈0.3, b≈40 and small σ.
Figure 11.3. Chains for parameters a, b, and the noise σ.
model.run_mcmc(500)
model.plot_chains()
plot(x,y,'o')
model.plot_predictions(xfit,color='g')

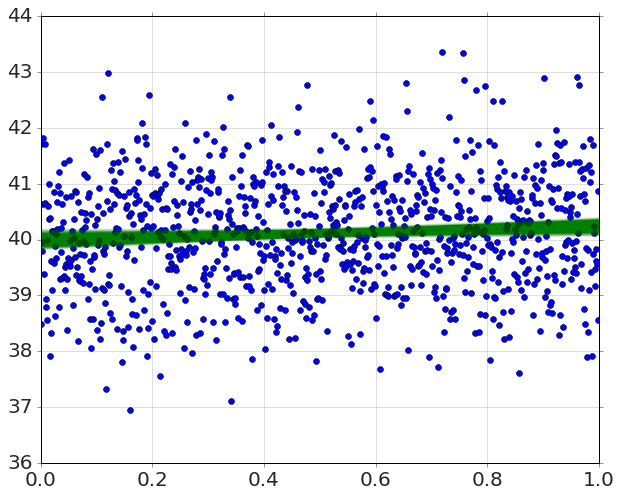

Scatter of about 1,000 blue data points between roughly 37 and 43.5 with a dense green band of model predictions running horizontally near 40; the band's thinness against the scatter shows the fit's small uncertainty.
Figure 11.4. Data (blue) and predictions (green) for the model - the width of the predictions demonstrates the uncertainty.
model.plot_distributions()

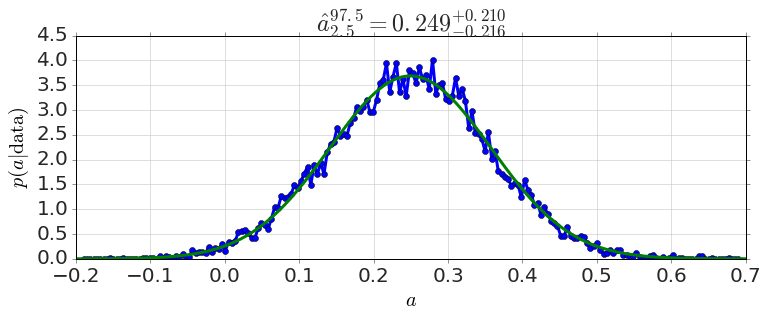

Sampled posterior for the slope parameter a: a noisy blue histogram trace with a smooth green curve over it, titled a=0.249 (+0.210/-0.216), peaking near 0.25 and spanning about -0.1 to 0.6.
Figure 11.5. Distributions for parameters a and b (slope and intercept).

And we can look at best estimates, quartiles, and probability comparisons,

model.percentiles([5,50,95])
Show expected output
{'_sigma': array([ 0.97143798,  1.00744104,  1.0467333 ]),
 'a': array([ 0.07063144,  0.24939562,  0.42523751]),
 'b': array([ 39.88446461,  39.98633744,  40.09010139])}
model.P('a>0')
Show expected output
0.98936000000000002
