9.1 Electrical Current

Up to now, we have considered primarily static charges. When charges did move, they were accelerated in response to an electrical field created by a voltage difference. The charges lost potential energy and gained kinetic energy as they traveled through a potential difference where the electrical field did work on the charge.

Although charges do not require a material to flow through, the majority of this chapter deals with understanding the movement of charges through a material. The rate at which the charges flow past a location—that is, the amount of charge per unit time—is known as the electrical current. When charges flow through a medium, the current depends on the voltage applied, the material through which the charges flow, and the state of the material. Of particular interest is the motion of charges in a conducting wire. In previous chapters, charges were accelerated due to the force provided by an electrical field, losing potential energy and gaining kinetic energy. In this chapter, we discuss the situation of the force provided by an electrical field in a conductor, where charges lose kinetic energy to the material reaching a constant velocity, known as the “drift velocity.” This is analogous to an object falling through the atmosphere and losing kinetic energy to the air, reaching a constant terminal velocity.

If you have ever taken a course in first aid or safety, you may have heard that in the event of electric shock, it is the current, not the voltage, which is the important factor on the severity of the shock and the amount of damage to the human body. Current is measured in units called amperes; you may have noticed that circuit breakers in your home and fuses in your car are rated in amps (or amperes). But what is the ampere and what does it measure?

Defining Current and the Ampere

Electrical current is defined to be the rate at which charge flows. When there is a large current present, such as that used to run a refrigerator, a large amount of charge moves through the wire in a small amount of time. If the current is small, such as that used to operate a handheld calculator, a small amount of charge moves through the circuit over a long period of time.

Most electrical appliances are rated in amperes (or amps) required for proper operation, as are fuses and circuit breakers.

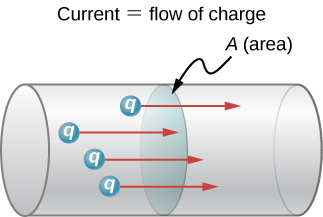

Left picture shows an image of the human spinal column taken using magnetic resonance imaging. Left picture is a photograph of the magnetic resonance imaging instrument. — **Figure 9.2** The rate of flow of charge is current. An ampere is the flow of one coulomb of charge through an area in one second. A current of one amp would result from $6.25 \times 10^{18}$ electrons flowing through the area A each second.

Example 1 Calculating the Average Current

The main purpose of a battery in a car or truck is to run the electric starter motor, which starts the engine. The operation of starting the vehicle requires a large current to be supplied by the battery. Once the engine starts, a device called an alternator takes over supplying the electric power required for running the vehicle and for charging the battery.

(a) What is the average current involved when a truck battery sets in motion 720 C of charge in 4.00 s while starting an engine? (b) How long does it take 1.00 C of charge to flow from the battery?

Strategy We can use the definition of the average current in the equation $I = \frac{Δ Q}{Δ t}$ to find the average current in part (a), since charge and time are given. For part (b), once we know the average current, we can its definition $I = \frac{Δ Q}{Δ t}$ to find the time required for 1.00 C of charge to flow from the battery.

Solution a. Entering the given values for charge and time into the definition of current gives

$I = \frac{Δ Q}{Δ t} = \frac{720 C}{4.00 s} = 180 C/s = 180 A .$

b. Solving the relationship $I = \frac{Δ Q}{Δ t}$ for time $Δ t$ and entering the known values for charge and current gives

$Δ t = \frac{Δ Q}{I} = \frac{1.00 C}{180 C/s} = 5.56 \times 10^{−3} s = 5.56 ms .$

Significance a. This large value for current illustrates the fact that a large charge is moved in a small amount of time. The currents in these “starter motors” are fairly large to overcome the inertia of the engine. b. A high current requires a short time to supply a large amount of charge. This large current is needed to supply the large amount of energy needed to start the engine.

Example 2 Calculating Instantaneous Currents

Consider a charge moving through a cross-section of a wire where the charge is modeled as $Q (t) = Q_{M} (1 - e^{− t / τ})$ . Here, $Q_{M}$ is the charge after a long period of time, as time approaches infinity, with units of coulombs, and $τ$ is a time constant with units of seconds (see Figure 9.3). What is the current through the wire?

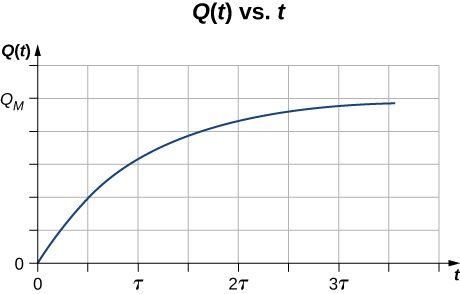

Figure 9.3 A graph of the charge moving through a cross-section of a wire over time.

Strategy The current through the cross-section can be found from $I = \frac{d Q}{d t}$ . Notice from the figure that the charge increases to $Q_{M}$ and the derivative decreases, approaching zero, as time increases (Figure 9.4).

Solution The derivative can be found using $\frac{d}{d x} e^{u} = e^{u} \frac{d u}{d x}$ .

$I = \frac{d Q}{d t} = \frac{d}{d t} [Q_{M} (1 - e^{− t / τ})] = \frac{Q_{M}}{τ} e^{− t / τ} .$

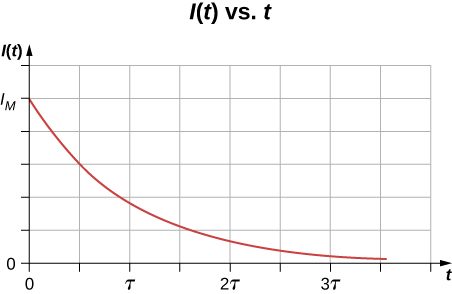

Figure 9.4 A graph of the current flowing through the wire over time.

Significance The current through the wire in question decreases exponentially, as shown in Figure 9.4. In later chapters, it will be shown that a time-dependent current appears when a capacitor charges or discharges through a resistor. Recall that a capacitor is a device that stores charge. You will learn about the resistor in Model of Conduction in Metals.

Check Your Understanding

Handheld calculators often use small solar cells to supply the energy required to complete the calculations needed to complete your next physics exam. The current needed to run your calculator can be as small as 0.30 mA. How long would it take for 1.00 C of charge to flow from the solar cells? Can solar cells be used, instead of batteries, to start traditional internal combustion engines presently used in most cars and trucks?

The time for 1.00 C of charge to flow would be $Δ t = \frac{Δ Q}{I} = \frac{1.00 C}{0.300 \times 10^{−3} C/s} = 3.33 \times 10^{3} s$ , slightly less than an hour. This is quite different from the 5.55 ms for the truck battery. The calculator takes a very small amount of energy to operate, unlike the truck’s starter motor. There are several reasons that vehicles use batteries and not solar cells. Aside from the obvious fact that a light source to run the solar cells for a car or truck is not always available, the large amount of current needed to start the engine cannot easily be supplied by present-day solar cells. Solar cells can possibly be used to charge the batteries. Charging the battery requires a small amount of energy when compared to the energy required to run the engine and the other accessories such as the heater and air conditioner. Present day solar-powered cars are powered by solar panels, which may power an electric motor, instead of an internal combustion engine.

Current in a Circuit

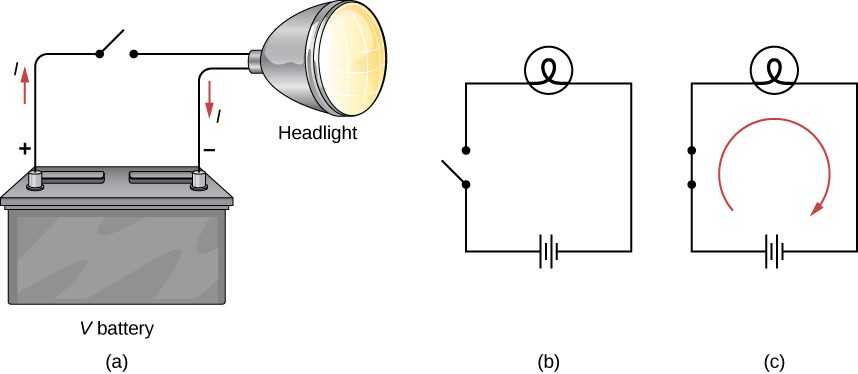

In the previous paragraphs, we defined the current as the charge that flows through a cross-sectional area per unit time. In order for charge to flow through an appliance, such as the headlight shown in Figure 9.5, there must be a complete path (or circuit) from the positive terminal to the negative terminal. Consider a simple circuit of a car battery, a switch, a headlight lamp, and wires that provide a current path between the components. In order for the lamp to light, there must be a complete path for current flow. In other words, a charge must be able to leave the positive terminal of the battery, travel through the component, and back to the negative terminal of the battery. The switch is there to control the circuit. Part (a) of the figure shows the simple circuit of a car battery, a switch, a conducting path, and a headlight lamp. Also shown is the schematic of the circuit [part (b)]. A schematic is a graphical representation of a circuit and is very useful in visualizing the main features of a circuit. Schematics use standardized symbols to represent the components in a circuits and solid lines to represent the wires connecting the components. The battery is shown as a series of long and short lines, representing the historic voltaic pile. The lamp is shown as a circle with a loop inside, representing the filament of an incandescent bulb. The switch is shown as two points with a conducting bar to connect the two points and the wires connecting the components are shown as solid lines. The schematic in part (c) shows the direction of current flow when the switch is closed.

This image shows three figures in a row. The figure on the left is Figure A. Figure A is the schematic drawing of headlight connected to a battery with a switch added to a circuit. Figure B is the schematic with the open switch. Figure C is the schematic with the closed switch and the current flowing through the circuit. — **Figure 9.5** (a) A simple electric circuit of a headlight (lamp), a battery, and a switch. When the switch is closed, an uninterrupted path for current to flow through is supplied by conducting wires connecting a load to the terminals of a battery. (b) In this schematic, the battery is represented by parallel lines, which resemble plates in the original design of a battery. The longer lines indicate the positive terminal. The conducting wires are shown as solid lines. The switch is shown, in the open position, as two terminals with a line representing a conducting bar that can make contact between the two terminals. The lamp is represented by a circle encompassing a filament, as would be seen in an incandescent light bulb. (c) When the switch is closed, the circuit is complete and current flows from the positive terminal to the negative terminal of the battery.

When the switch is closed in Figure 9.5(c), there is a complete path for charges to flow, from the positive terminal of the battery, through the switch, then through the headlight and back to the negative terminal of the battery. Note that the direction of current flow is from positive to negative. The direction of conventional current is always represented in the direction that positive charge would flow, from the positive terminal to the negative terminal.

The conventional current flows from the positive terminal to the negative terminal, but depending on the actual situation, positive charges, negative charges, or both may move. In metal wires, for example, current is carried by electrons—that is, negative charges move. In ionic solutions, such as salt water, both positive and negative charges move. This is also true in nerve cells. A Van de Graaff generator, used for nuclear research, can produce a current of pure positive charges, such as protons. In the Tevatron Accelerator at Fermilab, before it was shut down in 2011, beams of protons and antiprotons traveling in opposite directions were collided. The protons are positive and therefore their current is in the same direction as they travel. The antiprotons are negativity charged and thus their current is in the opposite direction that the actual particles travel.

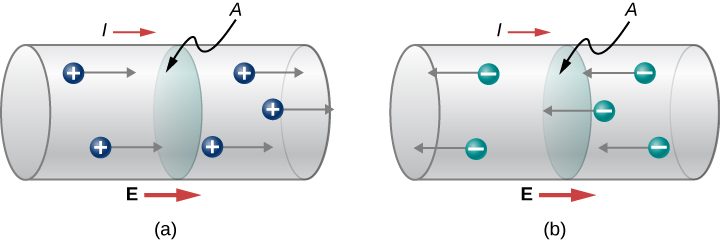

A closer look at the current flowing through a wire is shown in Figure 9.6. The figure illustrates the movement of charged particles that compose a current. The fact that conventional current is taken to be in the direction that positive charge would flow can be traced back to American scientist and statesman Benjamin Franklin in the 1700s. Having no knowledge of the particles that make up the atom (namely the proton, electron, and neutron), Franklin believed that electrical current flowed from a material that had more of an “electrical fluid” and to a material that had less of this “electrical fluid.” He coined the term positive for the material that had more of this electrical fluid and negative for the material that lacked the electrical fluid. He surmised that current would flow from the material with more electrical fluid—the positive material—to the negative material, which has less electrical fluid. Franklin called this direction of current a positive current flow. This was pretty advanced thinking for a man who knew nothing about the atom.

Picture A is a schematic drawing of positive charges flowing from left to right through the wire with the cross-sectional area A. Picture B is a schematic drawing of negative charges flowing from right to left through the wire with the cross-sectional area A. — **Figure 9.6** Current I is the rate at which charge moves through an area A, such as the cross-section of a wire. Conventional current is defined to move in the direction of the electrical field. (a) Positive charges move in the direction of the electrical field, which is the same direction as conventional current. (b) Negative charges move in the direction opposite to the electrical field. Conventional current is in the direction opposite to the movement of negative charge. The flow of electrons is sometimes referred to as electronic flow.

We now know that a material is positive if it has a greater number of protons than electrons, and it is negative if it has a greater number of electrons than protons. In a conducting metal, the current flow is due primarily to electrons flowing from the negative material to the positive material, but for historical reasons, we consider the positive current flow and the current is shown to flow from the positive terminal of the battery to the negative terminal.

It is important to realize that an electrical field is present in conductors and is responsible for producing the current (Figure 9.6). In previous chapters, we considered the static electrical case, where charges in a conductor quickly redistribute themselves on the surface of the conductor in order to cancel out the external electrical field and restore equilibrium. In the case of an electrical circuit, the charges are prevented from ever reaching equilibrium by an external source of electric potential, such as a battery. The energy needed to move the charge is supplied by the electric potential from the battery.

Although the electrical field is responsible for the motion of the charges in the conductor, the work done on the charges by the electrical field does not increase the kinetic energy of the charges. We will show that the electrical field is responsible for keeping the electric charges moving at a “drift velocity.”

Summary

The average electrical current $I_{ave}$ is the rate at which charge flows, given by $I_{ave} = \frac{Δ Q}{Δ t}$ , where $Δ Q$ is the amount of charge passing through an area in time $Δ t$ .
The instantaneous electrical current, or simply the current I, is the rate at which charge flows. Taking the limit as the change in time approaches zero, we have $I = \frac{d Q}{d t}$ , where $\frac{d Q}{d t}$ is the time derivative of the charge.
The direction of conventional current is taken as the direction in which positive charge moves. In a simple direct-current (DC) circuit, this will be from the positive terminal of the battery to the negative terminal.
The SI unit for current is the ampere, or simply the amp (A), where $1 A equals 1 C/s$ .
Current consists of the flow of free charges, such as electrons, protons, and ions.

Conceptual Questions

Can a wire carry a current and still be neutral—that is, have a total charge of zero? Explain.

If a wire is carrying a current, charges enter the wire from the voltage source’s positive terminal and leave at the negative terminal, so the total charge remains zero while the current flows through it.

Car batteries are rated in ampere-hours $(A \cdot h)$ . To what physical quantity do ampere-hours correspond (voltage, current, charge, energy, power,…)?

When working with high-power electric circuits, it is advised that whenever possible, you work “one-handed” or “keep one hand in your pocket.” Why is this a sensible suggestion?

Using one hand will reduce the possibility of “completing the circuit” and having current run through your body, especially current running through your heart.

Problems

A Van de Graaff generator is one of the original particle accelerators and can be used to accelerate charged particles like protons or electrons. You may have seen it used to make human hair stand on end or produce large sparks. One application of the Van de Graaff generator is to create X-rays by bombarding a hard metal target with the beam. Consider a beam of protons at 1.00 keV and a current of 5.00 mA produced by the generator. (a) What is the speed of the protons? (b) How many protons are produced each second?

a. $v = 4.38 \times 10^{5} \frac{m}{s}$ ;
b. $Δ q = 5.00 \times 10^{−3} C, no. of protons = 3.13 \times 10^{16}$

A cathode ray tube (CRT) is a device that produces a focused beam of electrons in a vacuum. The electrons strike a phosphor-coated glass screen at the end of the tube, which produces a bright spot of light. The position of the bright spot of light on the screen can be adjusted by deflecting the electrons with electrical fields, magnetic fields, or both. Although the CRT tube was once commonly found in televisions, computer displays, and oscilloscopes, newer appliances use a liquid crystal display (LCD) or plasma screen. You still may come across a CRT in your study of science. Consider a CRT with an electron beam average current of $25.00 μ A$ . How many electrons strike the screen every minute?

How many electrons flow through a point in a wire in 3.00 s if there is a constant current of $I equals 4.00 A$ ?

$I = \frac{Δ Q}{Δ t}, Δ Q = 12.00 C$
no. of electrons = $7.5 \times 10^{19}$

A conductor carries a current that is decreasing exponentially with time. The current is modeled as $I = I_{0} e^{− t / τ}$ , where $I sub 0 equals 3.00 A$ is the current at time $t equals 0.00 s$ and $τ equals 0.50 s$ is the time constant. How much charge flows through the conductor between $t equals 0.00 s$ and $t equals 3 τ$ ?

The quantity of charge through a conductor is modeled as $Q = 4.00 \frac{C}{s^{4}} t^{4} - 1.00 \frac{C}{s} t + 6.00 mC$ .

What is the current at time $t equals 3.00 s$ ?

$\begin{matrix} I (t) = 0.016 \frac{C}{s^{4}} t^{3} - 0.001 \frac{C}{s} \\ I (3.00 s) = 0.431 A \end{matrix}$

The current through a conductor is modeled as $I open parenthesis t close parenthesis equals I sub m sin open parenthesis 2 π [ 60 Hz ] t close parenthesis$ . Write an equation for the charge as a function of time.

The charge on a capacitor in a circuit is modeled as $Q (t) = Q_{max} cos (ω t + ϕ)$ . What is the current through the circuit as a function of time?

$I (t) = − I_{max} sin (ω t + ϕ)$
