8.2 Conservative and Non-Conservative Forces

In the interactions we considered in Potential Energy and Conservation of Energy, any transition between kinetic and potential energy did not change the total energy of the system. This was path independent, meaning that we can start and stop at any two points in the problem, and the total energy of the system—kinetic plus potential—at these points are equal to each other. This is characteristic of a conservative force. We dealt with conservative forces in the preceding section, such as the gravitational force and spring force. When comparing the motion of the football in Figure 8.2, the total energy of the system never changes, even though the gravitational potential energy of the football increases, as the ball rises relative to ground and falls back to the initial gravitational potential energy when the football player catches the ball. Non-conservative forces and the work that they do are path dependent. Dissipative forces such as friction or air resistance, for example, are non-conservative. These forces take energy away from the system as the system progresses; energy that you can’t get back. Push-pull forces are also generally non-conservative. Imagine pushing a merry-go-round. The total work done in returning to the starting point depends on how many revolutions are completed, and therefore the total energy at that location is not constant.

[In Equation 8.9, we use the notation of a circle in the middle of the integral sign for a line integral over a closed path, a notation found in most physics and engineering texts.] Equation 8.8 and Equation 8.9 are equivalent because any closed path is the sum of two paths: the first going from A to B, and the second going from B to A. The work done going along a path from B to A is the negative of the work done going along the same path from A to B, where A and B are any two points on the closed path:

$$\begin{array}{cc}\hfill 0={\displaystyle \oint {\overrightarrow{F}}_{\text{cons}}·d\overrightarrow{r}}& ={\displaystyle \underset{AB,\text{path}\text{-}1}{\int }{\overrightarrow{F}}_{\text{cons}}·d\overrightarrow{r}}+{\displaystyle \underset{BA,\text{path}\text{-}2}{\int }{\overrightarrow{F}}_{\text{cons}}·d\overrightarrow{r}}\hfill \\ & ={\displaystyle \underset{AB,\text{path}\text{-}1}{\int }{\overrightarrow{F}}_{\text{cons}}·d\overrightarrow{r}}-{\displaystyle \underset{AB,\text{path}\text{-}2}{\int }{\overrightarrow{F}}_{\text{cons}}·d\overrightarrow{r}}=0.\hfill \end{array}$$

You might ask how we go about proving whether or not a force is conservative, since the definitions involve any and all paths from A to B, or any and all closed paths, but to do the integral for the work, you have to choose a particular path. One answer is that the work done is independent of path if the infinitesimal work $\overrightarrow{F}·d\overrightarrow{r}$ is an exact differential, the way the infinitesimal net work was equal to the exact differential of the kinetic energy, $d{W}_{\text{net}}=m\overrightarrow{v}·d\overrightarrow{v}=d\frac{1}{2}m{\text{v}}^2,$

when we derived the work-energy theorem in Work-Energy Theorem. There are mathematical conditions that you can use to test whether the infinitesimal work done by a force is an exact differential, and the force is conservative. These conditions only involve differentiation and are thus relatively easy to apply. In two dimensions, the condition for $\overrightarrow{F}·d\overrightarrow{r}=F_{x}dx+F_{y}dy$ to be an exact differential is

You may recall that the work done by the force in Example 4 in Section 7.1 depended on the path. For that force,

$$F_x=\left(5\text{N/m}\right)y\text{and}{F}_y=\left(10\text{N/m}\right)x.$$

Therefore,

$$\left(d{F}_x\text{/}dy\right)=5\text{N/m}\ne \left(d{F}_y\text{/}dx\right)=10\text{N/m,}$$

which indicates it is a non-conservative force. Can you see what you could change to make it a conservative force?

Before leaving this section, we note that non-conservative forces do not have potential energy associated with them. There is always a conservative force associated with every potential energy. We have seen that potential energy is defined in relation to the work done by conservative forces. This relation, Equation 8.1, involved an integral for the work; starting with the force and displacement, you integrated to get the work and the change in potential energy. However, integration is the inverse operation of differentiation; you could equally well have started with the potential energy and taken its derivative, with respect to displacement, to get the force. The infinitesimal increment of potential energy is the dot product of the force and the infinitesimal displacement,

$$dU=\text{−}\overrightarrow{F}·d\overrightarrow{l}=\text{−}{F}_{l}dl.$$

Here, we chose to represent the displacement in an arbitrary direction by $d\overrightarrow{l},$ so as not to be restricted to any particular coordinate direction. We also expressed the dot product in terms of the magnitude of the infinitesimal displacement and the component of the force in its direction. Both these quantities are scalars, so you can divide by dl to get

This equation gives the relation between force and the potential energy associated with it. In words, the component of a conservative force, in a particular direction, equals the negative of the derivative of the corresponding potential energy, with respect to a displacement in that direction. For one-dimensional motion, say along the x-axis, Equation 8.11 give the entire vector force, $\stackrel{-}{F}=F_x\widehat{i}=-\frac{\partial U}{\partial x}\widehat{i}.$

In two dimensions,

$$\stackrel{-}{F}=F_x\widehat{i}+F_y\widehat{j}=\text{−}\left(\frac{\partial U}{\partial x}\right)\widehat{i}-\left(\frac{\partial U}{\partial y}\right)\widehat{j}.$$

From this equation, you can see why Equation 8.11 is the condition for the work to be an exact differential, in terms of the derivatives of the components of the force. In general, a partial derivative notation is used. If a function has many variables in it, the derivative is taken only of the variable the partial derivative specifies. The other variables are held constant. In three dimensions, you add another term for the z-component, and the result is that the force is the negative of the gradient of the potential energy. However, we won’t be looking at three-dimensional examples just yet.

Problems

A force $F\left(x\right)=\left(3.0\text{/}x\right)\text{N}$ acts on a particle as it moves along the positive x-axis. (a) How much work does the force do on the particle as it moves from $x=2.0\text{m}$ to $x=5.0\text{m?}$ (b) Why is it not possible to choose $x=\infty$ or $x_0=0$ as the reference point for the potential energy associated with this force?

A force $F\left(x\right)=\left(\mathrm{-5.0}{x}^2+7.0x\right)\text{N}$ acts on a particle. How much work does the force do on the particle as it moves from $x=2.0\text{m}$ to $x=5.0\text{m?}$

$$\mathrm{-120}\text{J}$$

Find the force corresponding to the potential energy $U\left(x\right)=\text{−}a\text{/}x+b\text{/}{x}^2.$

The potential energy function for either one of the two atoms in a diatomic molecule is often approximated by $U\left(x\right)=a\text{/}{x}^{12}-b\text{/}{x}^6$ where x is the distance between the atoms. (a) At what distance of separation does the potential energy have a local minimum (not at $x=\infty )?$ (b) What is the force on an atom at this separation? (c) How does the force vary with the separation distance?

a. ${\left(\frac{2a}{b}\right)}^{1\text{/}6}$; b. $0$; c. $\sim x^6$

A particle of mass $2.0\text{kg}$ moves under the influence of the force $F\left(x\right)=\left(3\text{/}\sqrt{x}\right)\text{N}.$ If its speed at $x=2.0\text{m}$ is $v=6.0\text{m/s,}$ what is its speed at $x=7.0\text{m?}$

A particle of mass $2.0\text{kg}$ moves under the influence of the force $F\left(x\right)=\left(\mathrm{-5}{x}^2+7x\right)\text{N}.$ If its speed at $x=\mathrm{-4.0}\text{m}$ is $v=20.0\text{m/s,}$ what is its speed at $x=4.0\text{m}?$

$$14\text{m}\text{/}\text{s}$$

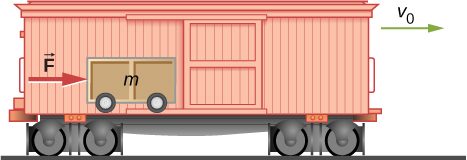

A crate on rollers is being pushed without frictional loss of energy across the floor of a freight car (see the following figure). The car is moving to the right with a constant speed $v_0.$ If the crate starts at rest relative to the freight car, then from the work-energy theorem, $Fd=m{v}^2\text{/}2,$ where d, the distance the crate moves, and v, the speed of the crate, are both measured relative to the freight car. (a) To an observer at rest beside the tracks, what distance $d\text{′}$ is the crate pushed when it moves the distance d in the car? (b) What are the crate’s initial and final speeds $v_0\text{′}$ and $v\text{′}$ as measured by the observer beside the tracks? (c) Show that $Fd\text{′}=m{\left(v\text{′}\right)}^2\text{/}2-m{\left(v{\text{′}}_0\right)}^2\text{/}2$ and, consequently, that work is equal to the change in kinetic energy in both reference systems.
