15.4 Pendulums

The Simple Pendulum

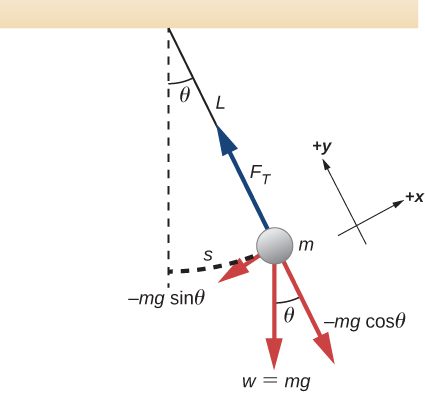

A simple pendulum is defined to have a point mass, also known as the pendulum bob, which is suspended from a string of length L with negligible mass (Figure 15.20). Here, the only forces acting on the bob are the force of gravity (i.e., the weight of the bob) and tension from the string. The mass of the string is assumed to be negligible as compared to the mass of the bob.

Consider the torque on the pendulum. The force providing the restoring torque is the component of the weight of the pendulum bob that acts along the arc length. The torque is the length of the string L times the component of the net force that is perpendicular to the radius of the arc. The minus sign indicates the torque acts in the opposite direction of the angular displacement:

$$\begin{array}{ccc}\hfill \tau & =\hfill & \text{−}L\left(mg\text{sin}\theta \right);\hfill \\ \hfill I\alpha & =\hfill & \text{−}L\left(mg\text{sin}\theta \right);\hfill \\ \hfill I\frac{d^2\theta }{d{t}^2}& =\hfill & \text{−}L\left(mg\text{sin}\theta \right);\hfill \\ \hfill m{L}^2\frac{d^2\theta }{d{t}^2}& =\hfill & \text{−}L\left(mg\text{sin}\theta \right);\hfill \\ \hfill \frac{d^2\theta }{d{t}^2}& =\hfill & -\frac{g}{L}\text{sin}\theta .\hfill \end{array}$$

The solution to this differential equation involves advanced calculus, and is beyond the scope of this text. But note that for small angles (less than 15 degrees or about 0.26 radians), $\text{sin}\theta$ and $\theta$ differ by less than 1%, if θ is measured in radians. We can then use the small angle approximation $\text{sin}\theta \approx \theta .$ The angle $\theta$ describes the position of the pendulum. Using the small angle approximation gives an approximate solution for small angles,

$$\frac{d^2\theta }{d{t}^2}=-\frac{g}{L}\theta .$$

Because this equation has the same form as the equation for SHM, the solution is easy to find. The angular frequency is

$$\omega =\sqrt{\frac{g}{L}}$$

and the period is

$$T=2\pi \sqrt{\frac{L}{g}}.$$

The period of a simple pendulum depends on its length and the acceleration due to gravity. The period is completely independent of other factors, such as mass and the maximum displacement. As with simple harmonic oscillators, the period T for a pendulum is nearly independent of amplitude, especially if $\theta$ is less than about $15\text{°}.$ Even simple pendulum clocks can be finely adjusted and remain accurate.

Note the dependence of T on g. If the length of a pendulum is precisely known, it can actually be used to measure the acceleration due to gravity, as in the following example.

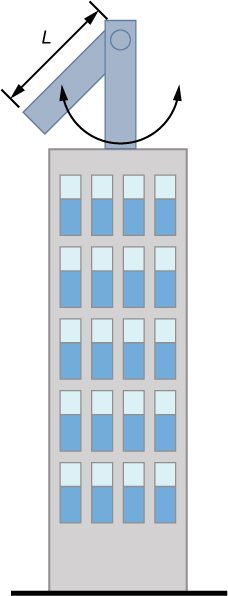

Physical Pendulum

Any object can oscillate like a pendulum. Consider a coffee mug hanging on a hook in the pantry. If the mug gets knocked, it oscillates back and forth like a pendulum until the oscillations die out. We have described a simple pendulum as a point mass and a string. A physical pendulum is any object whose oscillations are similar to those of the simple pendulum, but cannot be modeled as a point mass on a string, and the mass distribution must be included into the equation of motion.

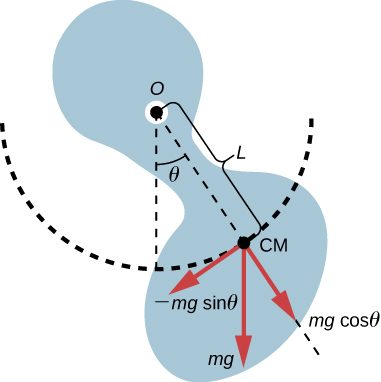

As for the simple pendulum, the restoring force of the physical pendulum is the force of gravity. With the simple pendulum, the force of gravity acts on the center of the pendulum bob. In the case of the physical pendulum, the force of gravity acts on the center of mass (CM) of an object. The object oscillates about a point O. Consider an object of a generic shape as shown in Figure 15.21.

When a physical pendulum is hanging from a point but is free to rotate, it rotates because of the torque applied at the CM, produced by the component of the object’s weight that acts tangent to the motion of the CM. Taking the counterclockwise direction to be positive, the component of the gravitational force that acts tangent to the motion is $\text{−}mg\text{sin}\theta$. The minus sign is the result of the restoring force acting in the opposite direction of the increasing angle. Recall that the torque is equal to $\overrightarrow{\tau }=\overrightarrow{r}\times \overrightarrow{F}$. The magnitude of the torque is equal to the length of the radius arm times the tangential component of the force applied, $\left|\tau \right|=rF\text{sin}\theta$. Here, the length L of the radius arm is the distance between the point of rotation and the CM. To analyze the motion, start with the net torque. Like the simple pendulum, consider only small angles so that $\text{sin}\theta \approx \theta$. Recall from Fixed-Axis Rotation on rotation that the net torque is equal to the moment of inertia $I={\displaystyle \int r^{2}dm}$ times the angular acceleration $\alpha ,$ where $\alpha =\frac{d^2\theta }{d{t}^2}$:

$$I\alpha ={\tau }_{\text{net}}=L\left(\text{−}mg\right)\text{sin}\theta .$$

Using the small angle approximation and rearranging:

$$\begin{array}{ccc}\hfill I\alpha & =\hfill & \text{−}L\left(mg\right)\theta ;\hfill \\ \hfill I\frac{d^2\theta }{d{t}^2}& =\hfill & \text{−}L\left(mg\right)\theta ;\hfill \\ \hfill \frac{d^2\theta }{d{t}^2}& =\hfill & \text{−}\left(\frac{mgL}{I}\right)\theta .\hfill \end{array}$$

Once again, the equation says that the second time derivative of the position (in this case, the angle) equals minus a constant $\left(-\frac{mgL}{I}\right)$ times the position. The solution is

$$\theta \left(t\right)=\text{Θ}\text{cos}\left(\omega t+\varphi \right),$$

where $\text{Θ}$ is the maximum angular displacement. The angular frequency is

$$\omega =\sqrt{\frac{mgL}{I}}.$$

The period is therefore

$$T=2\pi \sqrt{\frac{I}{mgL}}.$$

Note that for a simple pendulum, the moment of inertia is $I={\displaystyle \int r^{2}dm}=m{L}^2$ and the period reduces to $T=2\pi \sqrt{\frac{L}{g}}$.

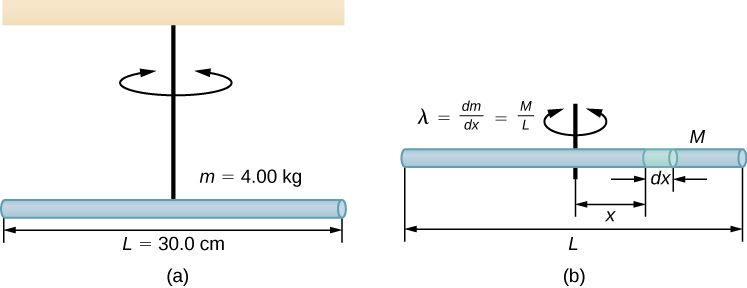

Torsional Pendulum

A torsional pendulum consists of a rigid body suspended by a light wire or spring (Figure 15.22). When the body is twisted some small maximum angle $\left(\text{Θ}\right)$ and released from rest, the body oscillates between $\left(\theta =+\text{Θ}\right)$ and $\left(\theta =\text{−}\text{Θ}\right)$. The restoring torque is supplied by the shearing of the string or wire.

The restoring torque can be modeled as being proportional to the angle:

$$\tau =\text{−}\kappa \theta .$$

The variable kappa $\left(\kappa \right)$ is known as the torsion constant of the wire or string. The minus sign shows that the restoring torque acts in the opposite direction to increasing angular displacement. The net torque is equal to the moment of inertia times the angular acceleration:

$$\begin{array}{}\\ I\frac{d^2\theta }{d{t}^2}=\text{−}\kappa \theta ;\hfill \\ \frac{d^2\theta }{d{t}^2}=-\frac{\kappa }{I}\theta .\hfill \end{array}$$

This equation says that the second time derivative of the position (in this case, the angle) equals a negative constant times the position. This looks very similar to the equation of motion for the SHM $\frac{d^{2}x}{d{t}^2}=-\frac{k}{m}x$, where the period was found to be $T=2\pi \sqrt{\frac{m}{k}}$. Therefore, the period of the torsional pendulum can be found using

$$T=2\pi \sqrt{\frac{I}{\kappa }}.$$

The units for the torsion constant are $\left[\kappa \right]=\text{N-m}=\left(\text{kg}\frac{\text{m}}{{\text{s}}^2}\right)\text{m}=\text{kg}\frac{{\text{m}}^2}{{\text{s}}^2}$ and the units for the moment of inertial are $\left[I\right]={\text{kg-m}}^2,$ which show that the unit for the period is the second.

Summary

• A mass m suspended by a wire of length L and negligible mass is a simple pendulum and undergoes SHM for amplitudes less than about $15\text{°}$. The period of a simple pendulum is $T=2\pi \sqrt{\frac{L}{g}}$, where L is the length of the string and g is the acceleration due to gravity.
• The period of a physical pendulum $T=2\pi \sqrt{\frac{I}{mgL}}$ can be found if the moment of inertia is known. The length between the point of rotation and the center of mass is L.
• The period of a torsional pendulum $T=2\pi \sqrt{\frac{I}{\kappa }}$ can be found if the moment of inertia and torsion constant are known.
