1.4 Geometry

Geometric shapes, as well as area and volumes, can often be important in problem solving.

Example 1

You are curious how tall a tree is, but don’t have any way to climb it. Describe a method for determining the height.

There are several approaches we could take. We’ll use one based on triangles, which requires that it’s a sunny day. Suppose the tree is casting a shadow, say 15 ft long. I can then have a friend help me measure my own shadow. Suppose I am 6 ft tall, and cast a 1.5 ft shadow. Since the triangle formed by the tree and its shadow has the same angles as the triangle formed by me and my shadow, these triangles are called similar triangles and their sides will scale proportionally. In other words, the ratio of height to width will be the same in both triangles. Using this, we can find the height of the tree, which we’ll denote by $h$ :

Show solution

$\frac{6 \mathrm{ft} \text { tall }}{1.5 \mathrm{ft} \text { shadow }}=\frac{h \mathrm{ft} \text { tall }}{15 \mathrm{ft} \text { shadow }}\nonumber$

Multiplying both sides by 15, we get $h = 60$ . The tree is about 60 ft tall.

It may be helpful to recall some formulas for areas and volumes of a few basic shapes.

Example 2

If a 12 inch diameter pizza requires 10 ounces of dough, how much dough is needed for a 16 inch pizza?

Show solution

To answer this question, we need to consider how the weight of the dough will scale. The weight will be based on the volume of the dough. However, since both pizzas will be about the same thickness, the weight will scale with the area of the top of the pizza. We can find the area of each pizza using the formula for area of a circle, $A=\pi r^{2}$ :

A 12” pizza has radius 6 inches, so the area will be $\pi 6^{2}$ = about 113 square inches.

A 16” pizza has radius 8 inches, so the area will be $\pi 8^{2}$ = about 201 square inches.

Notice that if both pizzas were 1 inch thick, the volumes would be 113 in³ and 201 in³ respectively, which are at the same ratio as the areas. As mentioned earlier, since the thickness is the same for both pizzas, we can safely ignore it.

We can now set up a proportion to find the weight of the dough for a 16” pizza:

$\frac{10 \text { ounces }}{113 \mathrm{in}^{2}}=\frac{x \text { ounces }}{201 \mathrm{in}^{2}}$ Multiply both sides by 201

$x=201 \cdot \frac{10}{113}=$ about 17.8 ounces of dough for a 16” pizza.

It is interesting to note that while the diameter is $\frac{16}{12}=1.33$ times larger, the dough required, which scales with area, is $1.33^{2}=1.78$ times larger.

Example 3

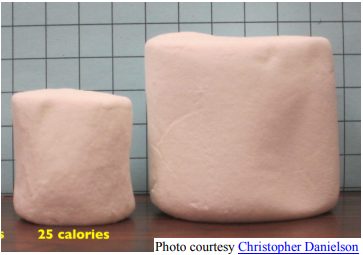

Photograph of a regular and a jumbo marshmallow, both squat cylinders, standing side by side in front of a square grid so their sizes can be read off. The regular one, labelled 25 calories, is about 3.5 grid squares wide and 3.5 squares tall; the jumbo one beside it is about 5.5 squares wide and 5 squares tall. A company makes regular and jumbo marshmallows. The regular marshmallow has 25 calories. How many calories will the jumbo marshmallow have?

We would expect the calories to scale with volume. Since the marshmallows have cylindrical shapes, we can use that formula to find the volume. From the grid in the image, we can estimate the radius and height of each marshmallow.

Show solution

The regular marshmallow appears to have a diameter of about 3.5 units, giving a radius of 1.75 units, and a height of about 3.5 units. The volume is about $\pi(1.75)^{2}(3.5)=33.7 \text { units}^{3}$ .

The jumbo marshmallow appears to have a diameter of about 5.5 units, giving a radius of 2.75 units, and a height of about 5 units. The volume is about $\pi(2.75)^{2}(5)=118.8 \text { units}^{3}$ .

We could now set up a proportion, or use rates. The regular marshmallow has 25 calories for 33.7 cubic units of volume. The jumbo marshmallow will have:

$118.8 \text { units }^{3} \cdot \frac{25 \text { calories }}{33.7 \text { units }^{3}}=88.1 \text { calories }$

It is interesting to note that while the diameter and height are about 1.5 times larger for the jumbo marshmallow, the volume and calories are about $1.5^{3}=3.375$ times larger.
