1.3 Thermal Expansion

The expansion of alcohol in a thermometer is one of many commonly encountered examples of thermal expansion, which is the change in size or volume of a given system as its temperature changes. The most visible example is the expansion of hot air. When air is heated, it expands and becomes less dense than the surrounding air, which then exerts an (upward) force on the hot air and makes steam and smoke rise, hot air balloons float, and so forth. The same behavior happens in all liquids and gases, driving natural heat transfer upward in homes, oceans, and weather systems, as we will discuss in an upcoming section. Solids also undergo thermal expansion. Railroad tracks and bridges, for example, have expansion joints to allow them to freely expand and contract with temperature changes, as shown in Figure 1.5.

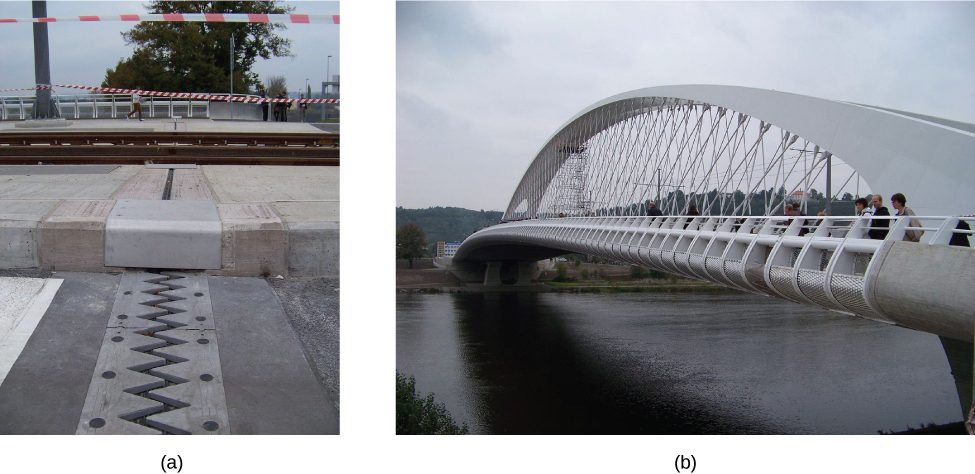

Photograph a shows an expansion joint as a small gap on a road. Photograph b shows Auckland Harbour Bridge. — **Figure 1.5** (a) Thermal expansion joints like these in the (b) Trojan Bridge in Prague, Czech Republic allow bridges to change length without buckling.(a) Thermal expansion joints like these in the (b) Trojan Bridge in Prague, Czech Republic allow bridges to change length without buckling. (credit: modification of works by “ŠJů”/Wikimedia Commons)

What is the underlying cause of thermal expansion? As previously mentioned, an increase in temperature means an increase in the kinetic energy of individual atoms. In a solid, unlike in a gas, the molecules are held in place by forces from neighboring molecules; as we saw in Oscillations, the forces can be modeled as in harmonic springs described by the Lennard-Jones potential. Energy in Simple Harmonic Motion shows that such potentials are asymmetrical in that the potential energy increases more steeply when the molecules get closer to each other than when they get farther away. Thus, at a given kinetic energy, the distance moved is greater when neighbors move away from each other than when they move toward each other. The result is that increased kinetic energy (increased temperature) increases the average distance between molecules—the substance expands.

For most substances under ordinary conditions, it is an excellent approximation that there is no preferred direction (that is, the solid is “isotropic”), and an increase in temperature increases the solid’s size by a certain fraction in each dimension. Therefore, if the solid is free to expand or contract, its proportions stay the same; only its overall size changes.

Table 1.2 lists representative values of the coefficient of linear expansion. As noted earlier, $Δ T$ is the same whether it is expressed in units of degrees Celsius or kelvins; thus, $α$ may have units of $1 / ° C$ or 1/K with the same value in either case. Approximating $α$ as a constant is quite accurate for small changes in temperature and sufficient for most practical purposes, even for large changes in temperature. We examine this approximation more closely in the next example.

**Table 1.2** Thermal Expansion Coefficients
Material	Coefficient of Linear Expansion $α open parenthesis 1 / ° C close parenthesis$	Coefficient of Volume Expansion $β open parenthesis 1 / ° C close parenthesis$
Solids
Aluminum	$25 \times 10^{−6}$	$75 \times 10^{−6}$
Brass	$19 \times 10^{−6}$	$56 \times 10^{−6}$
Copper	$17 \times 10^{−6}$	$51 \times 10^{−6}$
Gold	$14 \times 10^{−6}$	$42 \times 10^{−6}$
Iron or steel	$12 \times 10^{−6}$	$35 \times 10^{−6}$
Invar (nickel-iron alloy)	$0.9 \times 10^{−6}$	$2.7 \times 10^{−6}$
Lead	$29 \times 10^{−6}$	$87 \times 10^{−6}$
Silver	$18 \times 10^{−6}$	$54 \times 10^{−6}$
Glass (ordinary)	$9 \times 10^{−6}$	$27 \times 10^{−6}$
Glass (Pyrex®)	$3 \times 10^{−6}$	$9 \times 10^{−6}$
Quartz	$0.4 \times 10^{−6}$	$1 \times 10^{−6}$
Concrete, brick (approximate)	$12 \times 10^{−6}$	$36 \times 10^{−6}$
Marble (average)	$2.5 \times 10^{−6}$	$7.5 \times 10^{−6}$
Liquids
Ether		$1650 \times 10^{−6}$
Ethyl alcohol		$1100 \times 10^{−6}$
Gasoline		$950 \times 10^{−6}$
Glycerin		$500 \times 10^{−6}$
Mercury		$180 \times 10^{−6}$
Water		$210 \times 10^{−6}$
Gases
Air and most other gases at atmospheric pressure		$3400 \times 10^{−6}$

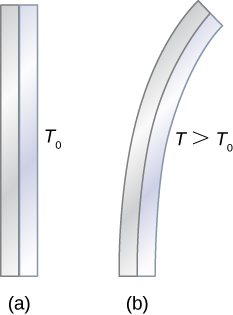

Thermal expansion is exploited in the bimetallic strip (Figure 1.6). This device can be used as a thermometer if the curving strip is attached to a pointer on a scale. It can also be used to automatically close or open a switch at a certain temperature, as in older or analog thermostats.

Figure a shows two vertical strips attached to each other. It is labeled T0. Figure b shows the same two strips bent towards the right. It is labeled T greater than T0. — **Figure 1.6** The curvature of a bimetallic strip depends on temperature. (a) The strip is straight at the starting temperature, where its two components have the same length. (b) At a higher temperature, this strip bends to the right, because the metal on the left has expanded more than the metal on the right. At a lower temperature, the strip would bend to the left.

Example 1 Calculating Linear Thermal Expansion

The main span of San Francisco’s Golden Gate Bridge is 1275 m long at its coldest. The bridge is exposed to temperatures ranging from $minus 15 ° C$ to $40 ° C$ . What is its change in length between these temperatures? Assume that the bridge is made entirely of steel.

Strategy Use the equation for linear thermal expansion $Δ L = α L Δ T$ to calculate the change in length, $Δ L$ . Use the coefficient of linear expansion $α$ for steel from Table 1.2, and note that the change in temperature $Δ T$ is $55 ° C.$

Solution Substitute all of the known values into the equation to solve for $Δ L$ :

$Δ L = α L Δ T = (\frac{12 \times 10^{−6}}{° C}) (1275 m) (55 ° C) = 0.84 m .$

Significance Although not large compared with the length of the bridge, this change in length is observable. It is generally spread over many expansion joints so that the expansion at each joint is small.

Thermal Expansion in Two and Three Dimensions

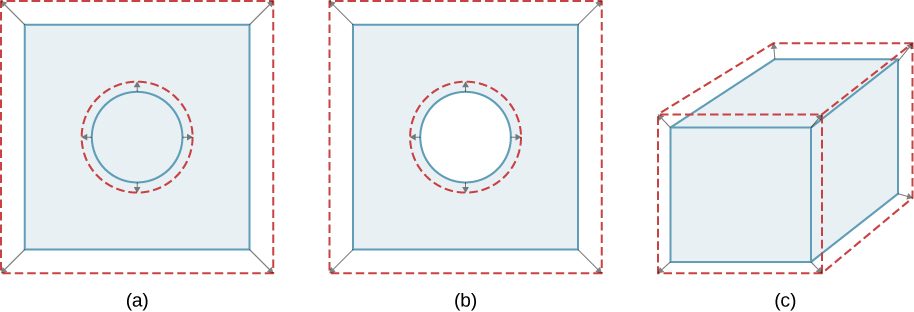

Unconstrained objects expand in all dimensions, as illustrated in Figure 1.7. That is, their areas and volumes, as well as their lengths, increase with temperature. Because the proportions stay the same, holes and container volumes also get larger with temperature. If you cut a hole in a metal plate, the remaining material will expand exactly as it would if the piece you removed were still in place. The piece would get bigger, so the hole must get bigger too.

Figure shows a circle inside a square. The circle is outlined by another, slightly bigger circle. The bigger circle is a dashed outline. Similarly, the square is outlined by a bigger, dashed square. Figure b is similar to figure a except that the inner circle is cut out of the square. Figure c is a cuboid surrounded by a bigger, dashed cuboid. — **Figure 1.7** In general, objects expand in all directions as temperature increases. In these drawings, the original boundaries of the objects are shown with solid lines, and the expanded boundaries with dashed lines. (a) Area increases because both length and width increase. The area of a circular plug also increases. (b) If the plug is removed, the hole it leaves becomes larger with increasing temperature, just as if the expanding plug were still in place. (c) Volume also increases, because all three dimensions increase.

Volume expansion is defined for liquids, but linear and area expansion are not, as a liquid’s changes in linear dimensions and area depend on the shape of its container. Thus, Table 1.2 shows liquids’ values of $β$ but not $α$ .

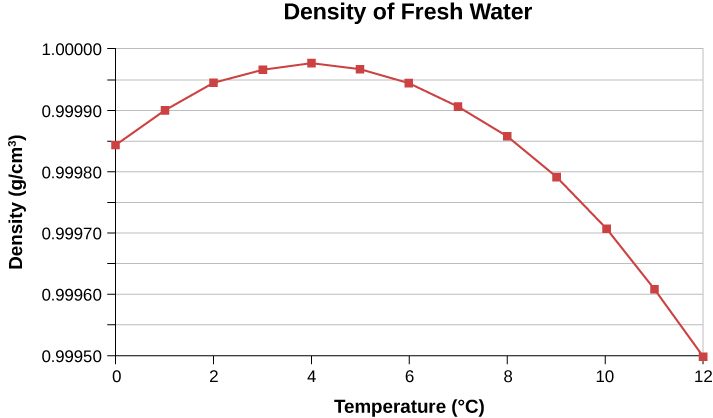

In general, objects expand with increasing temperature. Water is the most important exception to this rule. Water does expand with increasing temperature (its density decreases) at temperatures greater than $4 ° C open parenthesis 40 ° F close parenthesis$ . However, it is densest at $plus 4 ° C$ and expands with decreasing temperature between $plus 4 ° C$ and $0 ° C$ ( $40 ° F to 32 ° F$ ), as shown in Figure 1.8. A striking effect of this phenomenon is the freezing of water in a pond. When water near the surface cools down to $4 ° C,$ it is denser than the remaining water and thus sinks to the bottom. This “turnover” leaves a layer of warmer water near the surface, which is then cooled. However, if the temperature in the surface layer drops below $4 ° C$ , that water is less dense than the water below, and thus stays near the top. As a result, the pond surface can freeze over. The layer of ice insulates the liquid water below it from low air temperatures. Fish and other aquatic life can survive in $4 ° C$ water beneath ice, due to this unusual characteristic of water.

Figure shows a graph of density of fresh water in grams per cubic centimeter versus temperature in degree Celsius. The graph starts at 0.99985 at 0 degrees and rises to a maximum y value of just under 1 at 4 degrees Celsius. It then curves down to 0.99950 at 12 degrees Celsius. — **Figure 1.8** This curve shows the density of water as a function of temperature. Note that the thermal expansion at low temperatures is very small. The maximum density at $4 ° C$ is only $0.0075 %$ greater than the density at $2 ° C$ , and $0.012 %$ greater than that at $0 ° C$ . The decrease of density below $4 ° C$ occurs because the liquid water approachs the solid crystal form of ice, which contains more empty space than the liquid.

Example 2 Calculating Thermal Expansion

Suppose your 60.0-L $open parenthesis 15.9 -gal$ -gal) steel gasoline tank is full of gas that is cool because it has just been pumped from an underground reservoir. Now, both the tank and the gasoline have a temperature of $15.0 ° C.$ How much gasoline has spilled by the time they warm to $35.0 ° C$ ?

Strategy The tank and gasoline increase in volume, but the gasoline increases more, so the amount spilled is the difference in their volume changes. We can use the equation for volume expansion to calculate the change in volume of the gasoline and of the tank. (The gasoline tank can be treated as solid steel.)

Solution

Use the equation for volume expansion to calculate the increase in volume of the steel tank:
$Δ V_{s} = β_{s} V_{s} Δ T .$
The increase in volume of the gasoline is given by this equation:
$Δ V_{gas} = β_{gas} V_{gas} Δ T .$
Find the difference in volume to determine the amount spilled as
$V_{spill} = Δ V_{gas} - Δ V_{s} .$

Alternatively, we can combine these three equations into a single equation. (Note that the original volumes are equal.)

$\begin{matrix} V_{spill} & = (β_{ga}_{s} - β_{s}) V Δ T \\ = [(950 - 35) \times 10^{−6} / ° C] (60.0 L) (20.0 ° C) \\ = 1.10 L . \end{matrix}$

Significance This amount is significant, particularly for a 60.0-L tank. The effect is so striking because the gasoline and steel expand quickly. The rate of change in thermal properties is discussed later in this chapter.

If you try to cap the tank tightly to prevent overflow, you will find that it leaks anyway, either around the cap or by bursting the tank. Tightly constricting the expanding gas is equivalent to compressing it, and both liquids and solids resist compression with extremely large forces. To avoid rupturing rigid containers, these containers have air gaps, which allow them to expand and contract without stressing them.

Thermal Stress

If you change the temperature of an object while preventing it from expanding or contracting, the object is subjected to stress that is compressive if the object would expand in the absence of constraint and tensile if it would contract. This stress resulting from temperature changes is known as thermal stress. It can be quite large and can cause damage.

To avoid this stress, engineers may design components so they can expand and contract freely. For instance, in highways, gaps are deliberately left between blocks to prevent thermal stress from developing. When no gaps can be left, engineers must consider thermal stress in their designs. Thus, the reinforcing rods in concrete are made of steel because steel’s coefficient of linear expansion is nearly equal to that of concrete.

To calculate the thermal stress in a rod whose ends are both fixed rigidly, we can think of the stress as developing in two steps. First, let the ends be free to expand (or contract) and find the expansion (or contraction). Second, find the stress necessary to compress (or extend) the rod to its original length by the methods you studied in Static Equilibrium and Elasticity on static equilibrium and elasticity. In other words, the $Δ L$ of the thermal expansion equals the $Δ L$ of the elastic distortion (except that the signs are opposite).

Example 3 Calculating Thermal Stress

Concrete blocks are laid out next to each other on a highway without any space between them, so they cannot expand. The construction crew did the work on a winter day when the temperature was $5 ° C$ . Find the stress in the blocks on a hot summer day when the temperature is $38 ° C$ . The compressive Young’s modulus of concrete is $Y = 20 \times 10^{9} {N/m}^{2}$ .

Strategy According to the chapter on static equilibrium and elasticity, the stress F/A is given by

$\frac{F}{A} = Y \frac{Δ L}{L_{0}},$

where Y is the Young’s modulus of the material—concrete, in this case. In thermal expansion, $Δ L equals α L sub 0 Δ T.$ We combine these two equations by noting that the two $Δ L ’ s$ are equal, as stated above. Because we are not given $L sub 0$ or A, we can obtain a numerical answer only if they both cancel out.

Solution We substitute the thermal-expansion equation into the elasticity equation to get

$\frac{F}{A} = Y \frac{α L_{0} Δ T}{L_{0}} = Y α Δ T,$

and as we hoped, $L sub 0$ has canceled and A appears only in F/A, the notation for the quantity we are calculating.

Now we need only insert the numbers:

$\frac{F}{A} = (20 \times 10^{9} {N/m}^{2}) (12 \times 10^{−6} / ° C) (38 ° C - 5 ° C) = 7.9 \times 10^{6} {N/m}^{2} .$

Significance The ultimate compressive strength of concrete is $20 \times 10^{6} {N/m}^{2},$ so the blocks are unlikely to break. However, the ultimate shear strength of concrete is only $2 \times 10^{6} {N/m}^{2},$ so some might chip off.

Summary

Thermal expansion is the increase of the size (length, area, or volume) of a body due to a change in temperature, usually a rise. Thermal contraction is the decrease in size due to a change in temperature, usually a fall in temperature.
Thermal stress is created when thermal expansion or contraction is constrained.

Conceptual Questions

Pouring cold water into hot glass or ceramic cookware can easily break it. What causes the breaking? Explain why Pyrex®, a glass with a small coefficient of linear expansion, is less susceptible.

The cold water cools part of the inner surface, making it contract, while the rest remains expanded. The strain is too great for the strength of the material. Pyrex contracts less, so it experiences less strain.

One method of getting a tight fit, say of a metal peg in a hole in a metal block, is to manufacture the peg slightly larger than the hole. The peg is then inserted when at a different temperature than the block. Should the block be hotter or colder than the peg during insertion? Explain your answer.

Does it really help to run hot water over a tight metal lid on a glass jar before trying to open it? Explain your answer.

In principle, the lid expands more than the jar because metals have higher coefficients of expansion than glass. That should make unscrewing the lid easier. (In practice, getting the lid and jar wet may make gripping them more difficult.)

When a cold alcohol thermometer is placed in a hot liquid, the column of alcohol goes down slightly before going up. Explain why.

Calculate the length of a 1-meter rod of a material with thermal expansion coefficient $α$ when the temperature is raised from 300 K to 600 K. Taking your answer as the new initial length, find the length after the rod is cooled back down to 300 K. Is your answer 1 meter? Should it be? How can you account for the result you got?

After being heated, the length is ( $1 plus 300 α$ ) ( $1 m$ ). After being cooled, the length is $(1 - 300 α) (1 + 300 α) (1 m)$ . That answer is not 1 m, but it should be. The explanation is that even if $α$ is exactly constant, the relation $Δ L = α L Δ T$ is strictly true only in the limit of small $Δ T$ . Since $α$ values are small, the discrepancy is unimportant in practice.

Noting the large stresses that can be caused by thermal expansion, an amateur weapon inventor decides to use it to make a new kind of gun. He plans to jam a bullet against an aluminum rod inside a closed invar tube. When he heats the tube, the rod will expand more than the tube and a very strong force will build up. Then, by a method yet to be determined, he will open the tube in a split second and let the force of the rod launch the bullet at very high speed. What is he overlooking?

Problems

The height of the Washington Monument is measured to be 170.00 m on a day when the temperature is $35.0 ° C.$ What will its height be on a day when the temperature falls to $−10.0 ° C$ ? Although the monument is made of limestone, assume that its coefficient of thermal expansion is the same as that of marble. Give your answer to five significant figures.

Using Table 1.2 to find the coefficient of thermal expansion of marble:
$L = L_{0} + Δ L = L_{0} (1 + α Δ T) = 170 m [1 + (2.5 \times 10^{−6} / ° C) (−45.0 ° C)] = 169.98 m$ .
(Answer rounded to five significant figures to show the slight difference in height.)

How much taller does the Eiffel Tower become at the end of a day when the temperature has increased by $15 ° C?$ Its original height is 321 m and you can assume it is made of steel.

What is the change in length of a 3.00-cm-long column of mercury if its temperature changes from $37.0 ° C$ to $40.0 ° C$ , assuming the mercury is constrained to a cylinder but unconstrained in length? Your answer will show why thermometers contain bulbs at the bottom instead of simple columns of liquid.

We use $β$ instead of $α$ since this is a volume expansion with constant surface area. Therefore:
$Δ L = α L Δ T = (6.0 \times 10^{−5} / ° C) (0.0300 m) (3.00 ° C) = 5.4 \times 10^{−6} m$ .

How large an expansion gap should be left between steel railroad rails if they may reach a maximum temperature $35.0 ° C$ greater than when they were laid? Their original length is 10.0 m.

You are looking to buy a small piece of land in Hong Kong. The price is “only” $60,000 per square meter. The land title says the dimensions are $20 m times 30 m$ . By how much would the total price change if you measured the parcel with a steel tape measure on a day when the temperature was $20 ° C$ above the temperature that the tape measure was designed for? The dimensions of the land do not change.

On the warmer day, our tape measure will expand linearly. Therefore, each measured dimension will be smaller than the actual dimension of the land. Calling these measured dimensions $l'$ and $w'$ , we will find a new area, A. Let’s calculate these measured dimensions:
$l' = l_{0} - Δ l = (20 m) - (20 ° C) (20 m) (\frac{1.2 \times 10^{−5}}{° C}) = 19.9952 m$ ;
$A' = l \times w' = (29.9928 m) (19.9952 m) = 599.71 m^{2}$ ;
Cost change $= (A - A') (\frac{$ 60,000}{m^{2}}) = ((600 - 599.71) m^{2}) (\frac{$ 60,000}{m^{2}}) = $ 17,000$ .
Because the area gets smaller, the price of the land decreases by about $17,000.

Global warming will produce rising sea levels partly due to melting ice caps and partly due to the expansion of water as average ocean temperatures rise. To get some idea of the size of this effect, calculate the change in length of a column of water 1.00 km high for a temperature increase of $1.00 ° C$ . Assume the column is not free to expand sideways. As a model of the ocean, that is a reasonable approximation, as only parts of the ocean very close to the surface can expand sideways onto land, and only to a limited degree. As another approximation, neglect the fact that ocean warming is not uniform with depth.

(a) Suppose a meter stick made of steel and one made of aluminum are the same length at $0 to the power ° C$ . What is their difference in length at $22.0 ° C$ ? (b) Repeat the calculation for two 30.0-m-long surveyor’s tapes.

a. Use Table 1.2 to find the coefficients of thermal expansion of steel and aluminum. Then $Δ L_{Al} - Δ L_{steel} = (α_{Al} - α_{steel}) L_{0} Δ T = (\frac{2.5 \times 10^{−5}}{° C} - \frac{1.2 \times 10^{−5}}{° C}) (1.00 m) (22 ° C) = 2.9 \times 10^{−4} m$ .
b. By the same method with $L sub 0 equals 30.0 m$ , we have $Δ L = 8.6 \times 10^{−3} m$ .

(a) If a 500-mL glass beaker is filled to the brim with ethyl alcohol at a temperature of $5.00 ° C$ , how much will overflow when the alcohol’s temperature reaches the room temperature of $22.0 ° C$ ? (b) How much less water would overflow under the same conditions?

Most cars have a coolant reservoir to catch radiator fluid that may overflow when the engine is hot. A radiator is made of copper and is filled to its 16.0-L capacity when at $10.0 ° C$ . What volume of radiator fluid will overflow when the radiator and fluid reach a temperature of $95.0 ° C,$ given that the fluid’s volume coefficient of expansion is $β = 400 \times 10^{−6} / ° C$ ? (Your answer will be a conservative estimate, as most car radiators have operating temperatures greater than $95.0 ° C$ ).

$Δ V equals 0.475 L$

A physicist makes a cup of instant coffee and notices that, as the coffee cools, its level drops 3.00 mm in the glass cup. Show that this decrease cannot be due to thermal contraction by calculating the decrease in level if the $350 cm cubed$ of coffee is in a 7.00-cm-diameter cup and decreases in temperature from $95.0 ° C$ to $45.0 ° C$ . (Most of the drop in level is actually due to escaping bubbles of air.)

The density of water at $0 ° C$ is very nearly $1000 kg/m cubed$ (it is actually $999.84 kg/m cubed$ ), whereas the density of ice at $0 ° C$ is $917 kg/m cubed.$ Calculate the pressure necessary to keep ice from expanding when it freezes, neglecting the effect such a large pressure would have on the freezing temperature. (This problem gives you only an indication of how large the forces associated with freezing water might be.)

If we start with the freezing of water, then it would expand to $(1 m^{3}) (\frac{1000 {kg/m}^{3}}{917 {kg/m}^{3}}) = 1.09 m^{3} = 1.98 \times 10^{8} {N/m}^{2}$ of ice.

Exercise 1.60

Show that $β equals 3 α,$ by calculating the infinitesimal change in volume dV of a cube with sides of length L when the temperature changes by dT.
